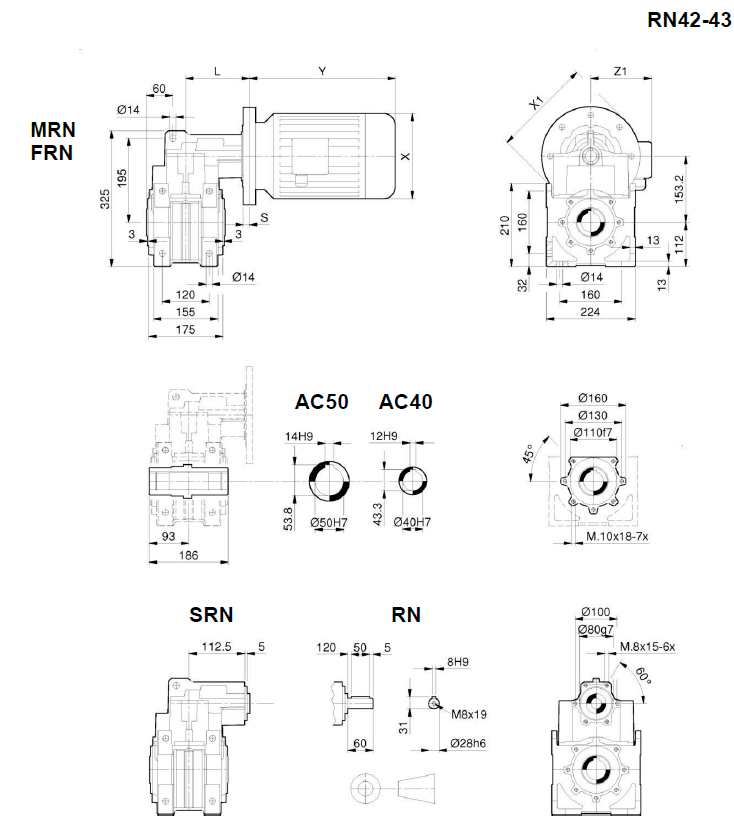

| RN | 42 / 43 | 42 / 43 | 42 / 43 | 42 / 43 | 42 / 43 | 42 |
| IEC | 71 | 80 | 90 S | 90 L | 100 | 112 |
| X / Y / Z1 | 140/220/121 | 159/238/138 | 176/255/149 | 176/280/149 | 195/314/160 | 219/328/172 |
| X1 (B5) / S | 160/15,5 | 200/15,5 | 200/15,5 | 200/15,5 | 250/16,5 | 250/16,5 |
| X1 (B14) / S | — — — | 120/15,5 | — — — | — — — | 160/15,5 | 160/15,5 |
| L (RN42) | 148 | 148 | 148 (151) | 148 (151) | 149 (148) | 149 (148) |
| L (RN43) | 148 | 148 | 148 (151) | 148 (151) | 149 (148) | — — — |

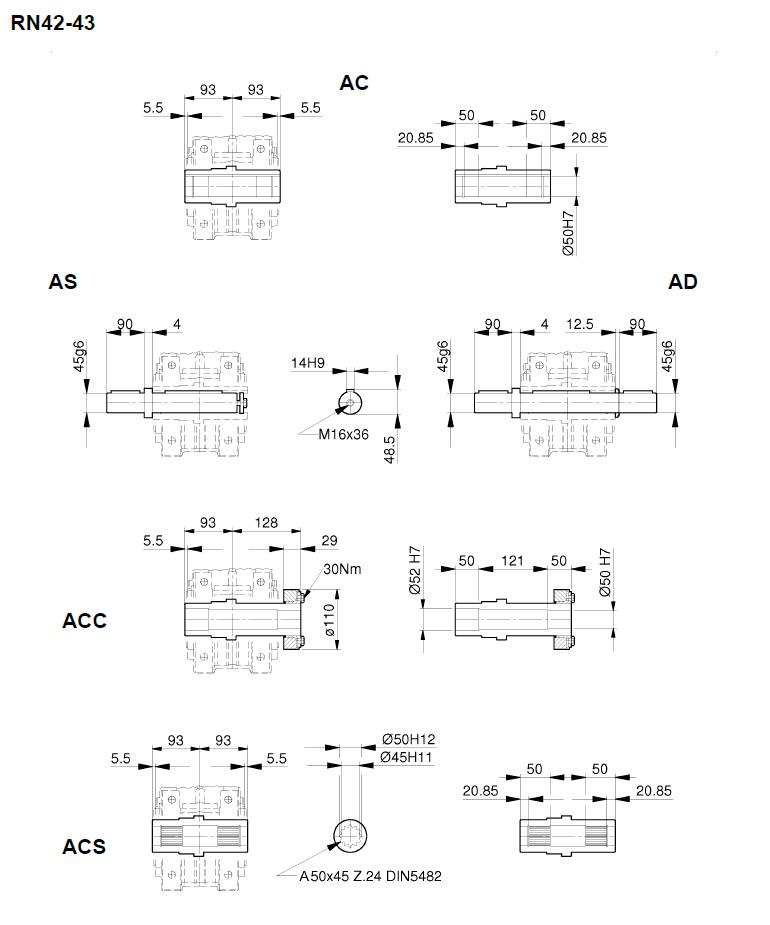

Размеры валов
| Вес | 48 кг |
|---|---|
| Габариты | 45 × 45 × 45 см |
| in | ir | n2 [об/мин] | M2 max [Нм] | P1 [кВт] | Fr1 [Н] | Fr2 [Н] | J1 (x 10-4) [кгм2] | 71 B5 | 80 B* | 90 B5 | 100 B* | 112 B* | |
| FRN 42 2c | 6,3 | 5,74 | 244 | 680 | 18 | — | 5030 | 13,0943 | | | | | |
| 7,1 | 7,26 | 193 | 790 | 17 | — | 5190 | 10,7969 | | | | | | |
| 8,0 | 7,59 | 185 | 690 | 14 | 2020 | 5680 | 11,2674 | | | | | | |
| 9,0 | 9,08 | 154 | 890 | 15 | — | 5660 | 9,2579 | | | | | | |
| 10,0 | 9,60 | 146 | 690 | 11 | 2400 | 6200 | 9,6555 | | | | | | |
| 11,2 | 11,55 | 121 | 910 | 12 | — | 6170 | 8,0995 | | | | | | |
| 12,5 | 12,00 | 117 | 700 | 9 | 2610 | 6720 | 8,5274 | | | | | | |
| 14,0 | 14,09 | 99,3 | 920 | 10 | 2440 | 6810 | 7,4107 | | | | | | |
| 16,0 | 15,27 | 91,7 | 710 | 7,1 | 2720 | 7330 | 7,6485 | | | | | | |
| 18,0 | 17,59 | 79,6 | 930 | 8,1 | — | 7410 | 6,8426 | | | | | | |
| 22,4 | 22,69 | 61,7 | 940 | 6,3 | 2090 | 8160 | 6,4129 | | | | | | |
| 28,0 | 28,28 | 49,5 | 890 | 4,8 | 2450 | 8920 | 6,1008 | | | | | | |
| 31,5 | 30,00 | 46,7 | 730 | 3,7 | 2850 | 9290 | 6,2602 | | | | | ||
| 35,5 | 37,39 | 37,4 | 740 | 3,0 | 2860 | 10030 | 6,0256 | | | | | ||
| 40 | 38,12 | 36,7 | 650 | 2,6 | 2800 | 10140 | 5,8382 | | | | | ||
| 45 | 45,27 | 30,9 | 750 | 2,5 | 2900 | 10720 | 5,8675 | | | | | ||
| 50 | 50,40 | 27,8 | 750 | 2,3 | 2870 | 11110 | 5,7968 | | | | | ||
| 56 | 56,67 | 24,7 | 700 | 1,9 | 2880 | 11600 | 5,7318 | | | | |||
| FRN 43 3c | 40 | 34,07 | 41,1 | 730 | 3,3 | — | 9670 | 4,3102 | | | | | |
| 45 | 42,59 | 32,9 | 910 | 3,3 | — | 10030 | 4,2058 | | | | | ||
| 56 | 54,21 | 25,8 | 980 | 2,8 | 2030 | 9830 | 4,1359 | | | | | ||
| 63 | 66,13 | 21,2 | 990 | 2,3 | 2270 | 10110 | 4,0833 | | | | | ||
| 71 | 70,82 | 19,8 | 410 | 0,9 | 3020 | 12640 | 4,0520 | | | ||||
| 80 | 82,52 | 17,0 | 1000 | 1,9 | 2720 | 10510 | 3,7956 | | | | |||
| 90 | 89,60 | 15,6 | 510 | 0,9 | 3020 | 13650 | 4,0262 | | | ||||
| 100 | 106,48 | 13,1 | 1010 | 1,5 | 3060 | 10930 | 3,7770 | | | | |||
| 140 | 132,69 | 10,6 | 950 | 1,1 | 3270 | 12260 | 4,0051 | | | | |||
| 160 | 160,69 | 8,7 | 760 | 0,74 | 3370 | 14590 | 3,9942 | | | ||||
| 180 | 173,90 | 8,1 | 800 | 0,72 | 3170 | 14570 | 3,9843 | | | ||||
| 200 | 201,13 | 7,0 | 550 | 0,43 | 3370 | 16680 | 3,7478 | | |||||
| 224 | 217,00 | 6,5 | 800 | 0,57 | 3300 | 15210 | 3,9773 | | | ||||
| 280 | 280,00 | 5,0 | 800 | 0,45 | 3370 | 16030 | 3,7425 | | |||||
| 355 | 348,92 | 4,01 | 800 | 0,36 | 3370 | 16500 | 3,7381 | | |||||
| 450 | 422,55 | 3,31 | 800 | 0,30 | 3370 | 16500 | 3,7354 | | |||||
| 500 | 470,40 | 2,98 | 800 | 0,27 | 3370 | 16500 | 3,7336 | | |||||
| 560 | 528,89 | 2,65 | 800 | 0,24 | 3370 | 17000 | 3,7328 | () |
