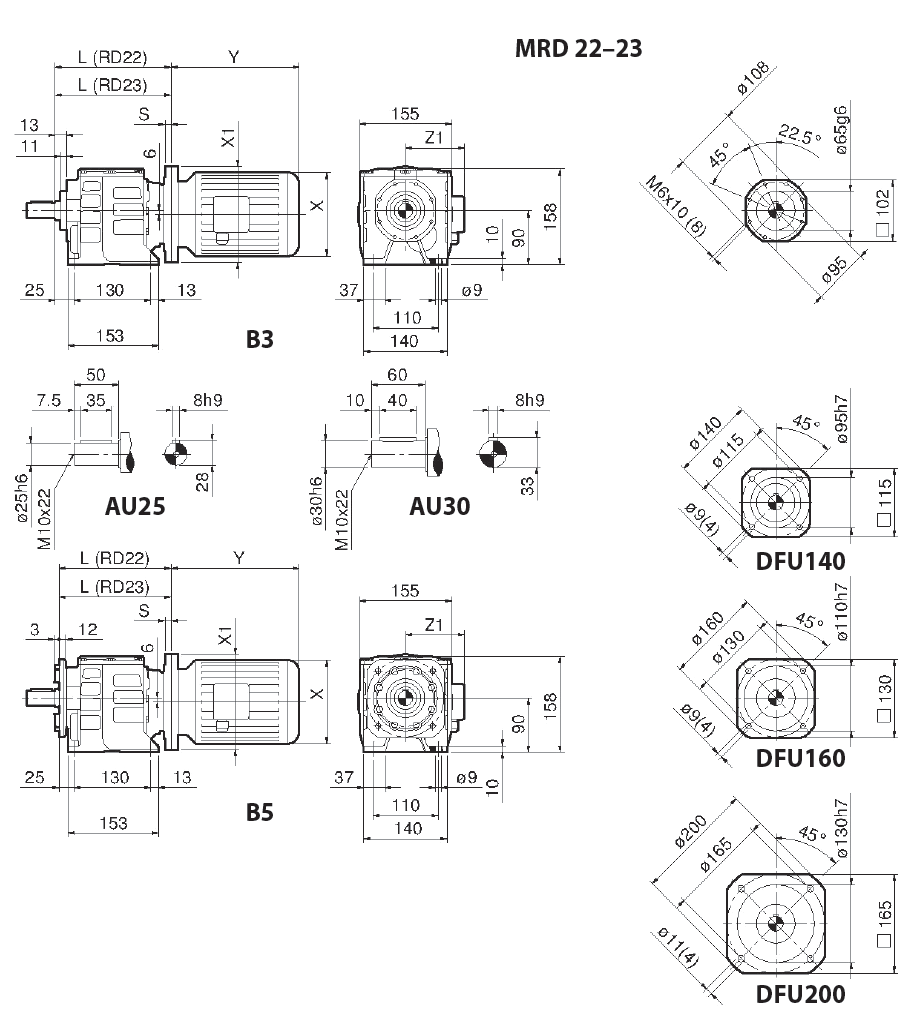

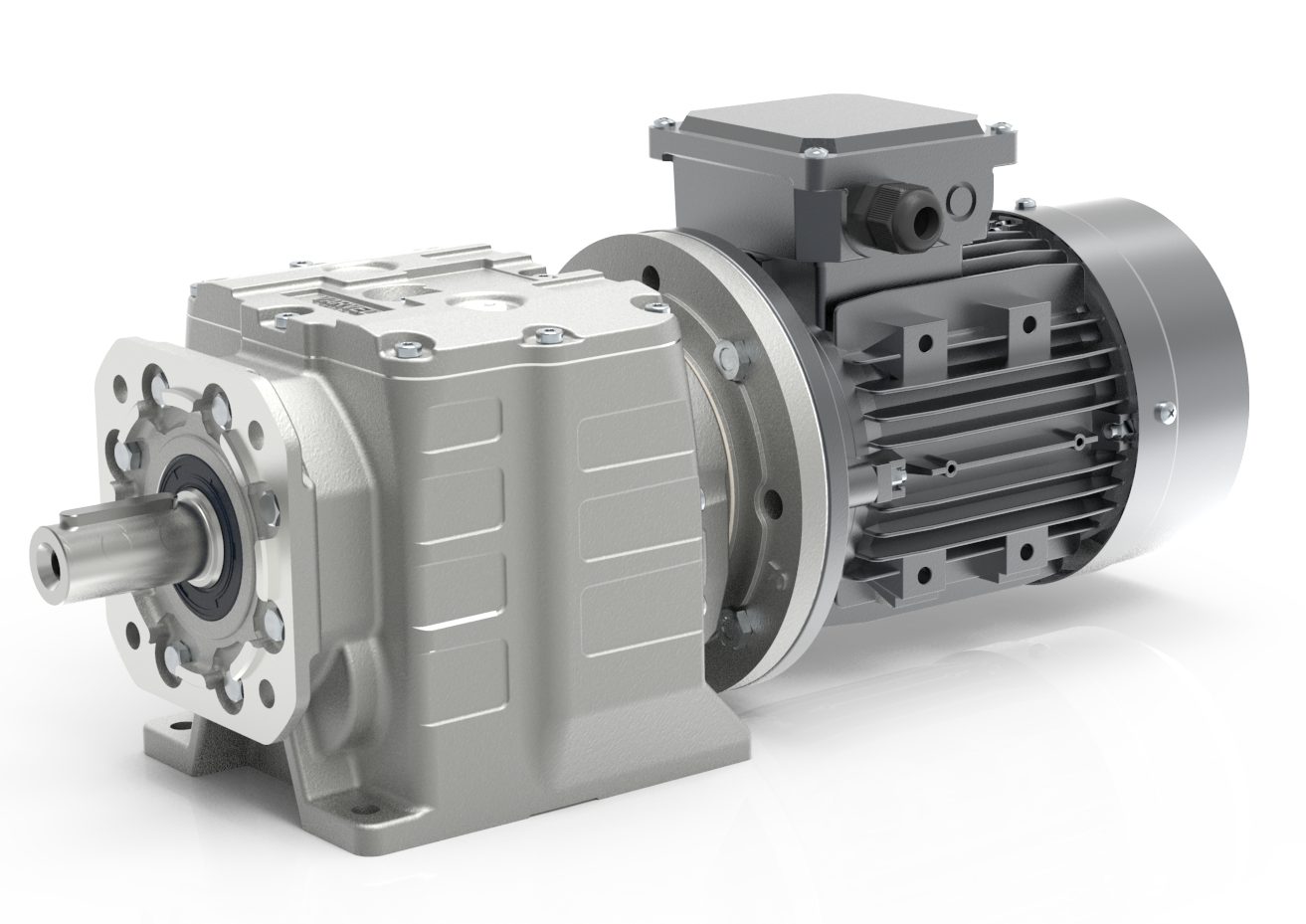

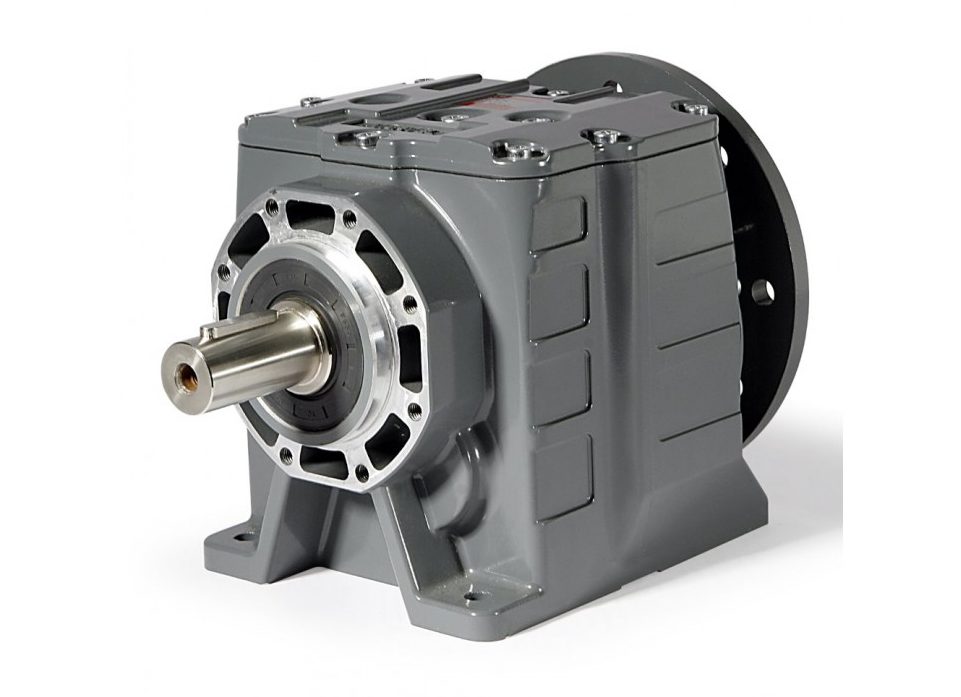

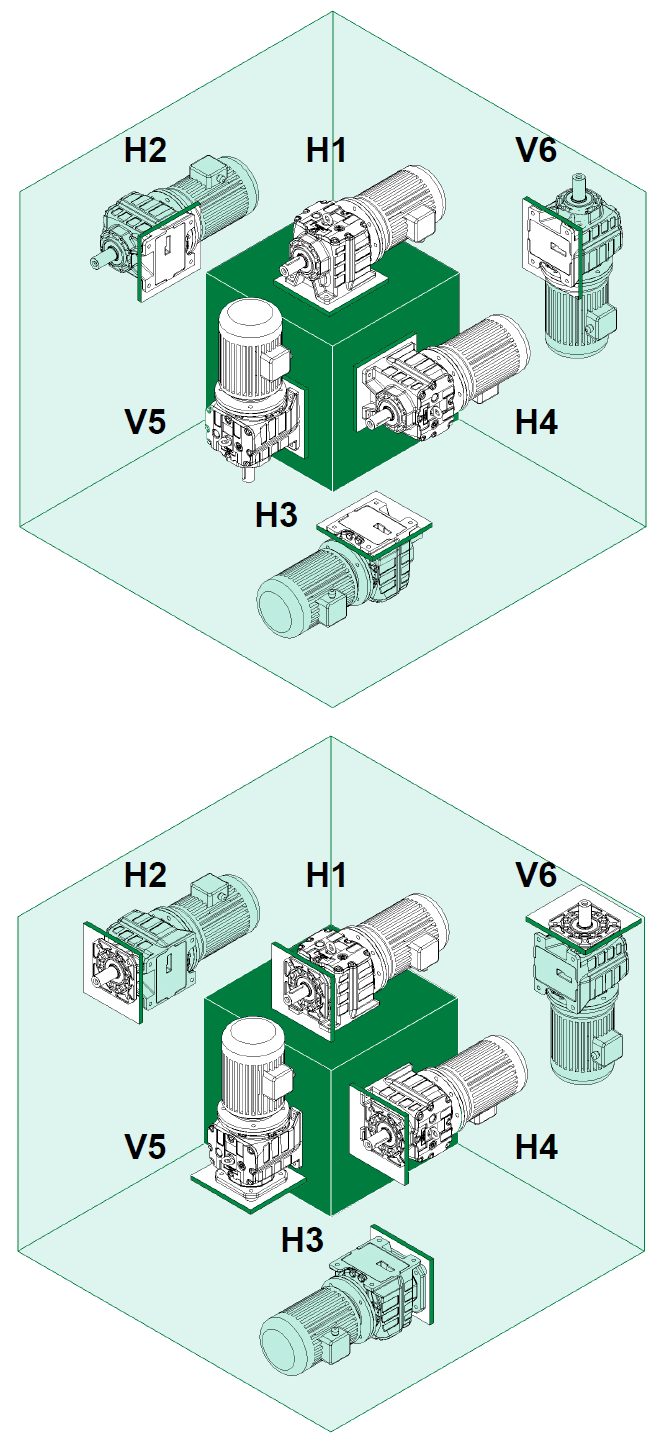

| RD | 22 / 23 | 22 / 23 | 22 / 23 | 22 / 23 | 22 / 23 | 22 | 22 |
| IEC | 63 | 71 | 80 | 90 S | 90 L | 100 | 112 |
| X / Y / Z1 | См. раздел «Электродвигатели» | ||||||
| X1 (B5) / S | 140/10 | 160/11,5 | 200/11 | 200/11 | 200/11 | 250/13 | 250/13 |
| X1 (B14) / S | — | 105/10,5 | 120/10 | 140/10 | 140/10 | 160/11,5 | 160/11,5 |
| L (RD22) | 192 | 190 | 190[192-B14] | 190[192-B14] | 190[192-B14] | 191[190-B14] | 191[190-B14] |
| L (RD23) | 211 | 209 | 209[210-B14] | 208[210-B14] | 209[210-B14] | — | — |
| Вес | 30 кг |
|---|---|
| Габариты | 25 × 26 × 26 см |
| Таблица выбора редукторов RD2 (n1 = 1400 мин-1) | ||||||||||||||||
| RD 2 | iном | iфакт | n2, мин-1 | M2lim, Нм | P1lim, кВт | Fr1 | Fr2 | J1 | Lub H | Lub V | кг | Рекомендуемый габарит двигателя | ||||
| 71 | 80 | 100 | 90 | 112 | ||||||||||||
| RD22 2c | 2,25 | 2,313 | 599 | 79 | 5,30 | | 1000 | 4,1128 | 0,8 | 1,0 | 7,9 | | | | | |
| 2,50 | 2,548 | 560 | 85 | 4,99 | | 1100 | 3,4569 | | | | | | ||||
| 2,80 | 2,875 | 487 | 85 | 4,60 | | 1200 | 3,1032 | | | | | | ||||
| 3,15 | 3,133 | 445 | 90 | 4,37 | | 1350 | 2,8995 | | | | | | ||||
| 3,55 | 3,594 | 390 | 91 | 4,00 | | 1400 | 2,6305 | | | | | | ||||
| 4,0 | 3,917 | 350 | 100 | 3,75 | | 1500 | 2,4858 | | | | | | ||||
| 4,5 | 4,600 | 304 | 97 | 3,30 | | 1600 | 2,2505 | | | | | | ||||
| 5,0 | 5,013 | 280 | 105 | 3,12 | | 1700 | 2,1816 | | | | | | ||||
| 5,6 | 5,665 | 247 | 102 | 2,80 | | 1760 | 2,5308 | | | | | | ||||
| 6,3 | 6,717 | 220 | 175 | 4,13 | | 1850 | 2,7248 | | | | | | ||||
| 7,1 | 7,188 | 195 | 99 | 2,20 | | 1910 | 2,6423 | | | | | |||||
| 8,0 | 8,267 | 175 | 180 | 3,39 | | 2000 | 2,4162 | | | | | |||||
| 9,0 | 9,296 | 151 | 83 | 1,40 | | 2040 | 2,2654 | | | | | |||||
| 10,0 | 10,333 | 140 | 180 | 2,74 | | 2100 | 2,1765 | | | | | |||||
| 12,5 | 13,227 | 110 | 180 | 2,17 | | 2200 | 1,9928 | | | | | |||||
| 16,0 | 16,290 | 90 | 185 | 1,78 | | 2300 | 1,8826 | | | | ||||||
| 20,0 | 20,667 | 70 | 190 | 1,42 | | 2400 | 1,7924 | | | | ||||||
| 25,0 | 26,729 | 55 | 190 | 1,11 | 40 | 2500 | 1,7234 | | | | ||||||
| 31,5 | 31,477 | 45 | 190 | 0,95 | 50 | 2600 | 1,6937 | | | | ||||||
| 40 | 39,388 | 35 | 140 | 0,53 | 720 | 2900 | 1,6604 | | | |||||||
| 50 | 50,758 | 30 | 140 | 0,41 | 740 | 3050 | 1,6757 | | ||||||||
| 63 | 62,127 | 22 | 140 | 0,34 | 760 | 3200 | 1,6537 | | ||||||||
| RD23 3c | 40 | 40,759 | 35 | 200 | 0,75 | 140 | 2300 | 1,7501 | 0,8 | 1,25 | 8,5 | | | | ||
| 50 | 52,172 | 30 | 200 | 0,59 | 280 | 2400 | 2,5709 | | | | ||||||
| 63 | 64,256 | 22 | 200 | 0,48 | 380 | 2500 | 2,5490 | | | | ||||||
| 80 | 81,519 | 18 | 200 | 0,39 | 460 | 2600 | 2,5337 | | ||||||||
| 100 | 105,431 | 14 | 200 | 0,30 | 550 | 2700 | 2,5230 | | ||||||||
| 125 | 124,159 | 11 | 200 | 0,25 | 590 | 2800 | 2,5195 | | ||||||||
| 160 | 164,938 | 9,0 | 200 | 0,19 | 430 | 2900 | 3,0999 | IEC63-B5 | ||||||||
| 200 | 209,250 | 7,0 | 200 | 0,15 | 520 | 3000 | 3,0889 | IEC63-B5 | ||||||||
| 250 | 270,630 | 5,5 | 200 | 0,12 | 580 | 3200 | 3,0816 | IEC63-B5 | ||||||||
| 315 | 318,704 | 4,5 | 200 | 0,10 | 600 | 3500 | 3,0796 | () = IEC63-B5 | ||||||||
| 400 | 398,802 | 3,5 | 140 | 0,06 | 700 | 3500 | 3,0809 | () = IEC63-B5 | ||||||||
| 500 | 513,920 | 2,8 | 140 | 0,04 | 730 | 3500 | 3,0790 | () = IEC63-B5 | ||||||||
| 630 | 629,039 | 2,2 | 140 | 0,04 | 760 | 3500 | 3,0783 | () = IEC63-B5 | ||||||||
