Габаритные и присоединительные размеры

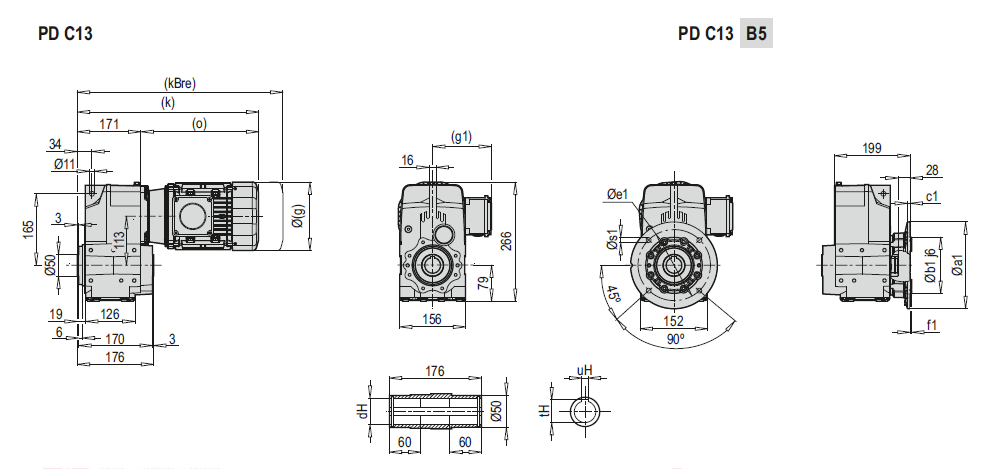

PD C13, PD C13 B5
| dH | Ø 35 | (Ø 30) | (Ø 25) |
| uH | 10 | (8) | (8) |
| tH | 38.3 | (33.3) | (28.3) |
| a1 | b1 | c1 | e1 | f1 | s1 |
| 160 | 110 | 12 | 130 | 3.5 | 4×9 |
| 200 | 130 | 12 | 165 | 3.5 | 4×11 |

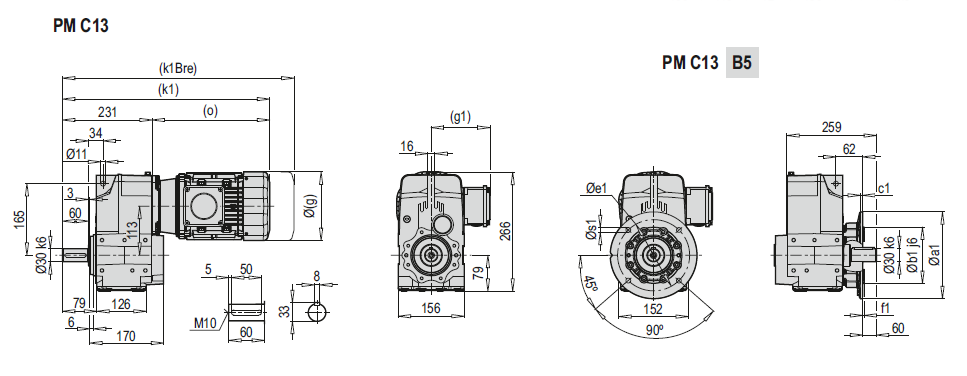

PM C13, PM C13 B5
| 63 M | 71 M | 80 M | 90 S/L | 100 L | |
| g | 124 | 140 | 172 | 182 | 202 |
| g1 | 111 | 119 | 131 | 130 | 153 |
| k/k1 | 364/424 | 395/455 | 419/479 | 484/544 | 524/584 |
| kBre/k1Bre | 416/476 | 455/515 | 489/549 | 552/612 | 607/667 |
| o | 193 | 224 | 253 | 318 | 358 |
