Габаритные и присоединительные размеры

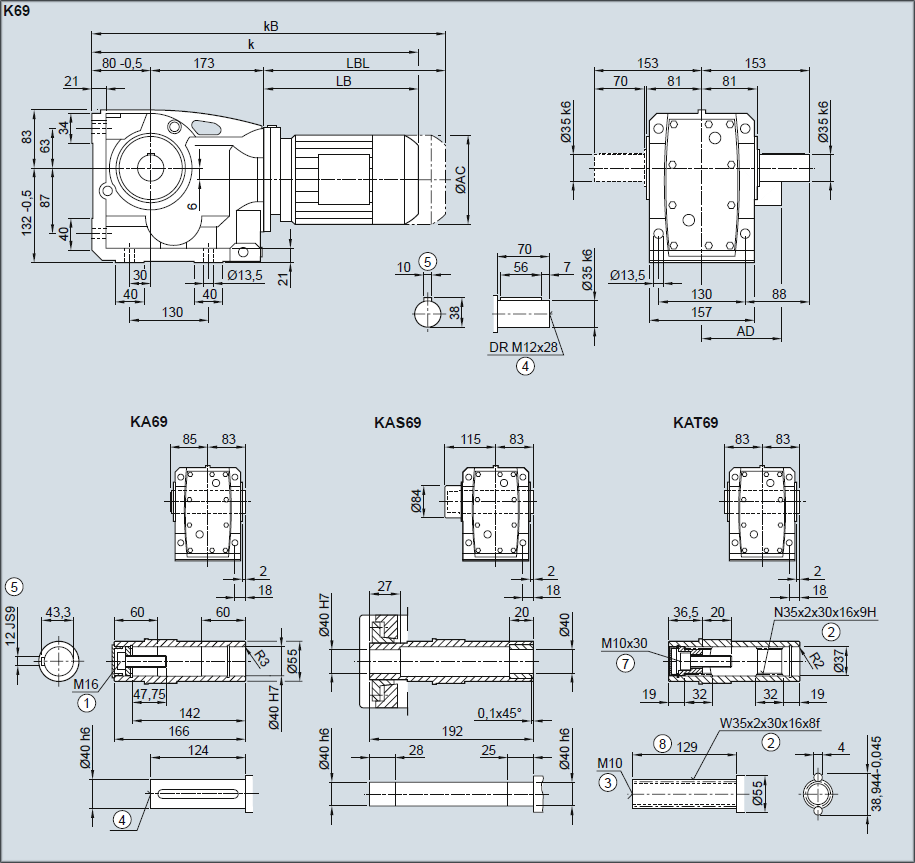

Редуктор K69, KA69, KAS69, KAT69 — Исполнение на лапах
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 437,5 | 469,5 | 533,5 | 568,5 | 595,0 | 635,0 | 651,5 | 686,5 | 661,5 | 696,0 | 714,5 | 764,5 |
| kB | 482,0 | 524,5 | 593,5 | 628,5 | 665,0 | 705,0 | 730,0 | 765,0 | 734,5 | 769,0 | 819,0 | 869,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

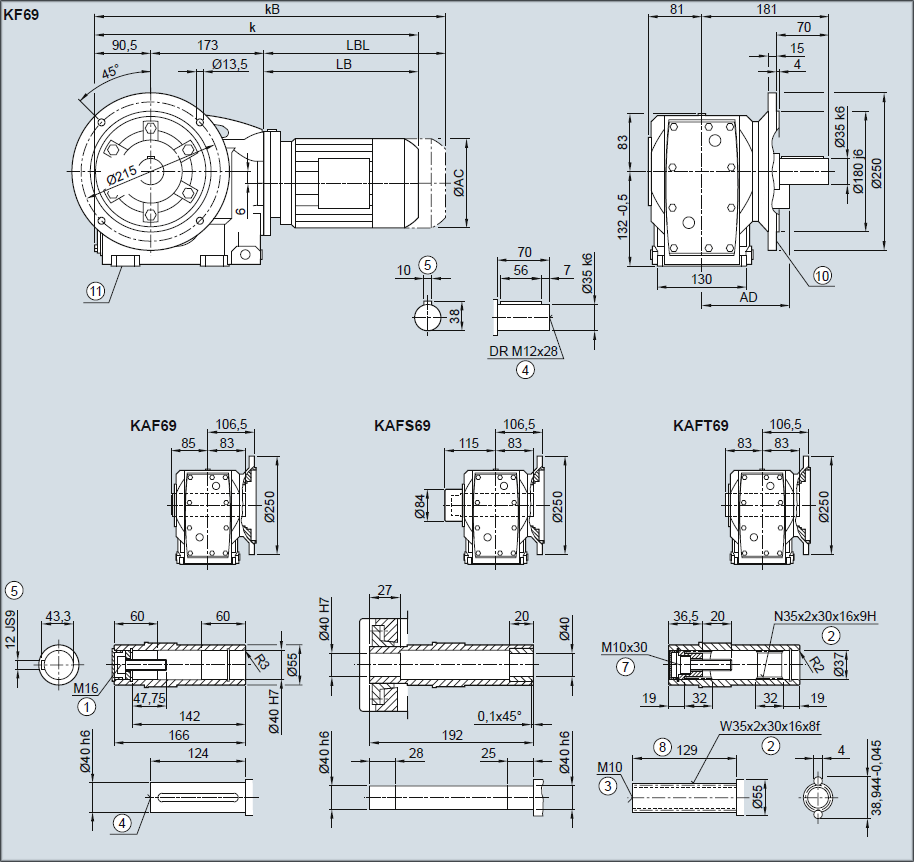

Редуктор KF69, KAF69, KASF69, KATF69 — Исполнение с фланцем
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 437,5 | 469,5 | 533,5 | 568,5 | 595,0 | 635,0 | 651,5 | 686,5 | 661,5 | 696,0 | 714,5 | 764,5 |
| kB | 482,0 | 524,5 | 593,5 | 628,5 | 665,0 | 705,0 | 730,0 | 765,0 | 734,5 | 769,0 | 819,0 | 869,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

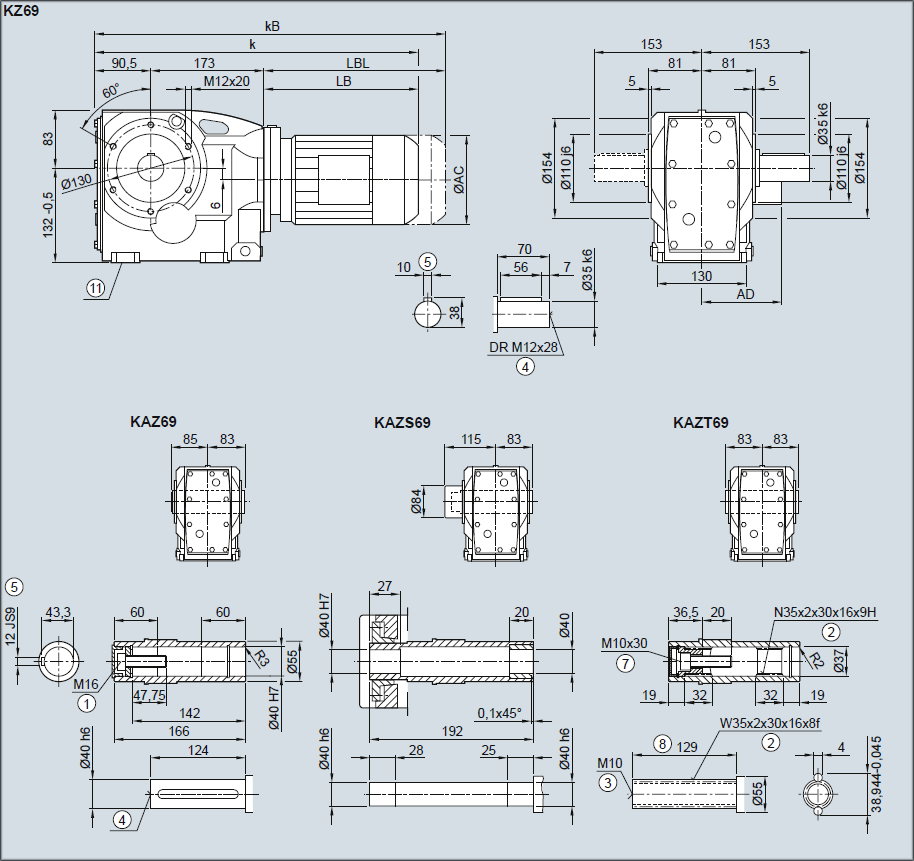

Редуктор KZ69, KAZ69, KAZS69, KAZT69 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 437,5 | 469,5 | 533,5 | 568,5 | 595,0 | 635,0 | 651,5 | 686,5 | 661,5 | 696,0 | 714,5 | 764,5 |
| kB | 482,0 | 524,5 | 593,5 | 628,5 | 665,0 | 705,0 | 730,0 | 765,0 | 734,5 | 769,0 | 819,0 | 869,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
