Габаритные и присоединительные размеры

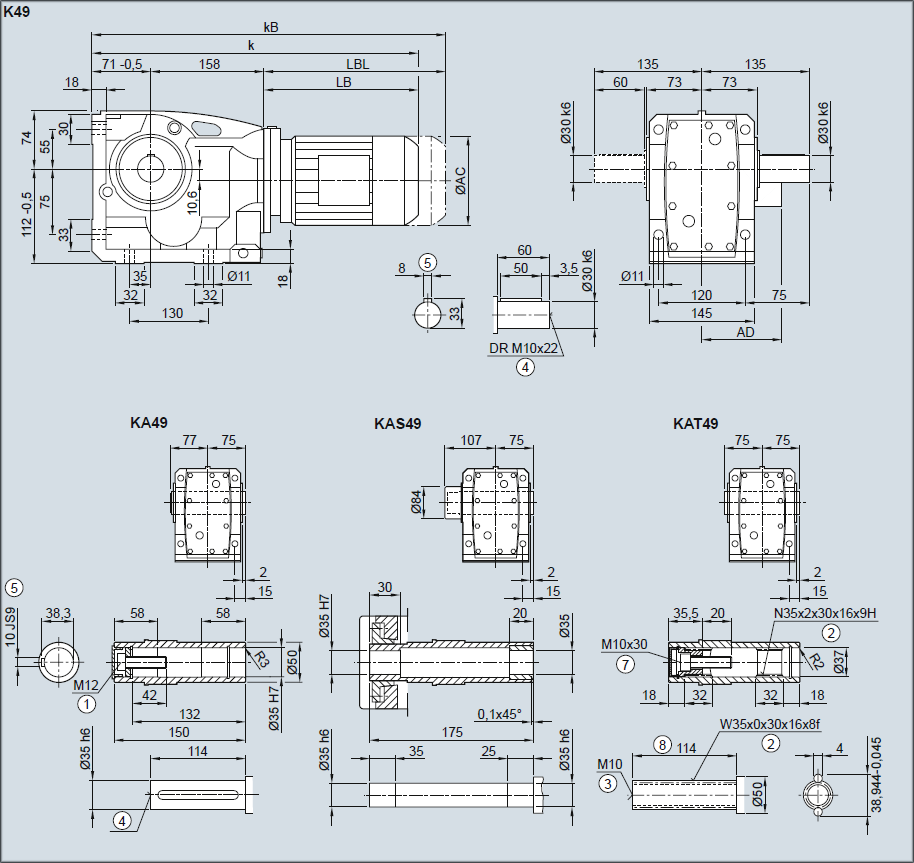

Редуктор K49, KA49, KAS49, KAT49 — Исполнение на лапах
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 413,5 | 445,5 | 509,5 | 544,5 | 571,0 | 611,0 | 627,5 | 662,5 | 637,5 | 672,0 | 690,5 | 740,5 |
| kB | 458,0 | 500,5 | 569,5 | 604,5 | 641,0 | 681,0 | 706,0 | 741,0 | 710,5 | 745,0 | 795,0 | 845,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

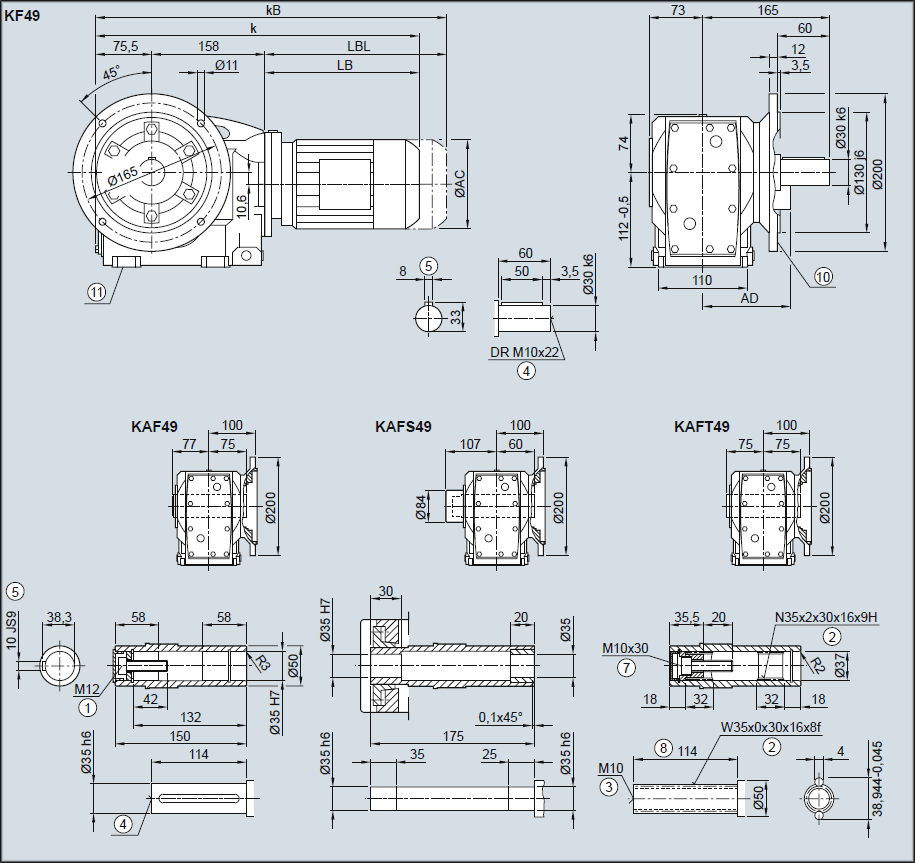

Редуктор KF49, KAF49, KASF49, KATF49 — Исполнение с фланцем
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 413,5 | 445,5 | 509,5 | 544,5 | 571,0 | 611,0 | 627,5 | 662,5 | 637,5 | 672,0 | 690,5 | 740,5 |
| kB | 458,0 | 500,5 | 569,5 | 604,5 | 641,0 | 681,0 | 706,0 | 741,0 | 710,5 | 745,0 | 795,0 | 845,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

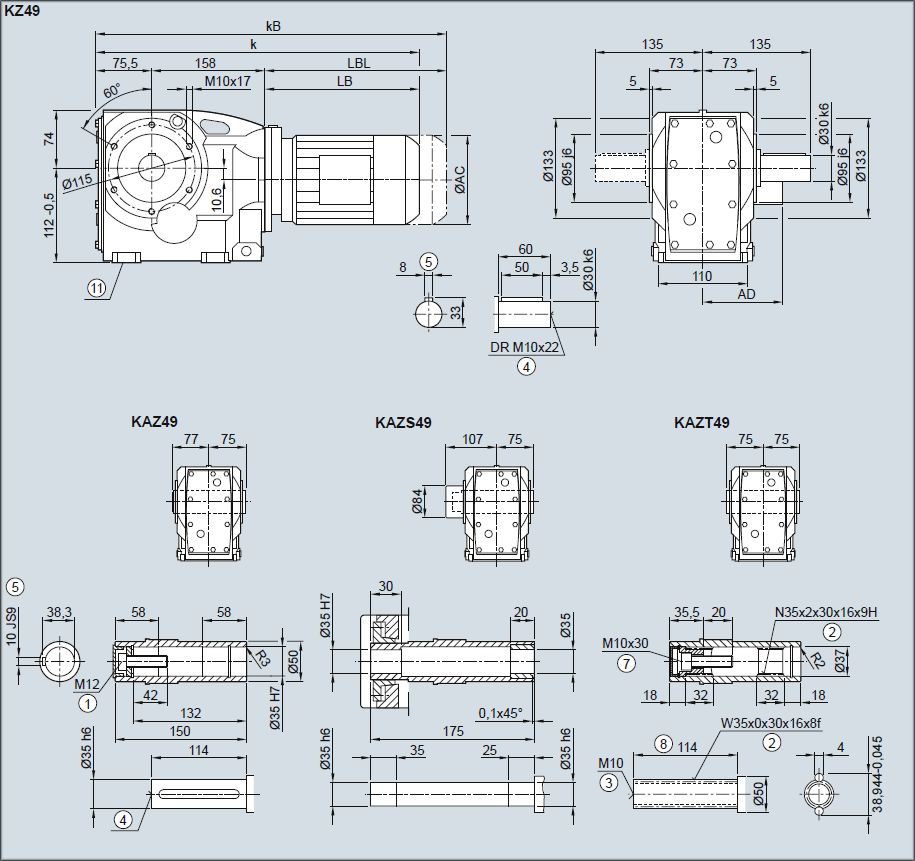

Редуктор KZ49, KAZ49, KAZS49, KAZT49 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 413,5 | 445,5 | 509,5 | 544,5 | 571,0 | 611,0 | 627,5 | 662,5 | 637,5 | 672,0 | 690,5 | 740,5 |
| kB | 458,0 | 500,5 | 569,5 | 604,5 | 641,0 | 681,0 | 706,0 | 741,0 | 710,5 | 745,0 | 795,0 | 845,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
