Габаритные и присоединительные размеры

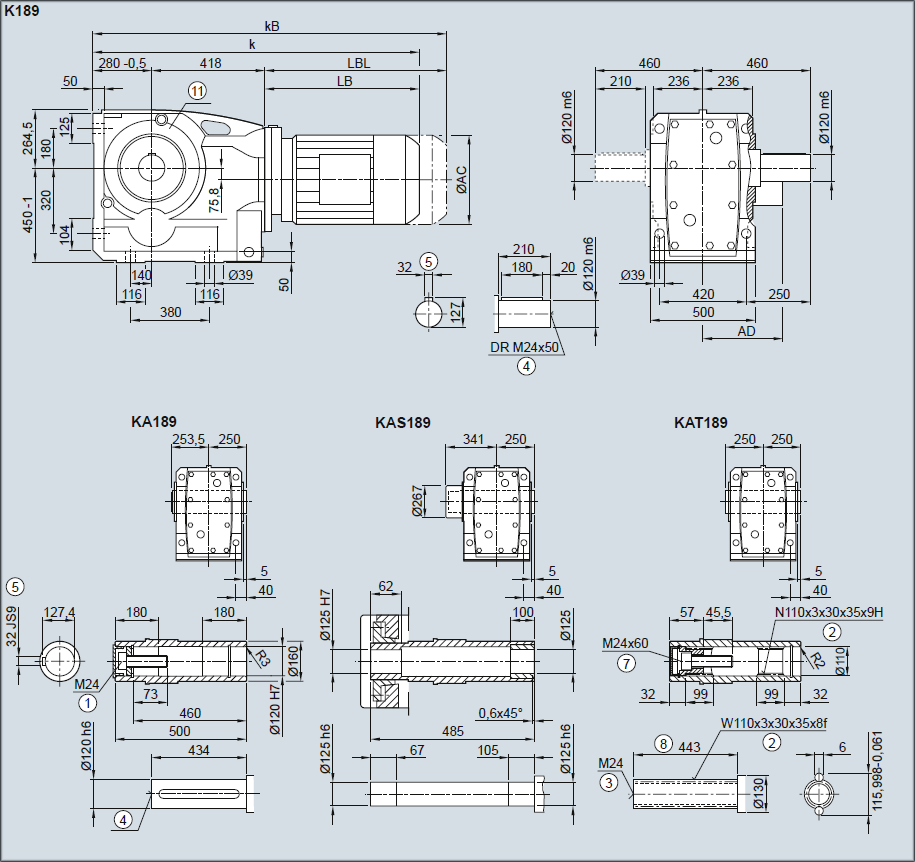

Редуктор K189, KA189, KAS189, KAT189 — Исполнение на лапах
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,5 |
| k | 1 051,5 | 1 076,5 | 1 097,0 | 1 147,0 | 1 179,0 | 1 239,0 | 1 251,5 | 1 281,5 | 1 319,5 | 1 344,5 | 1 364,0 | 1 424,0 | 1 471,5 |
| kB | 1 124,5 | 1 149,5 | 1 201,5 | 1 251,5 | 1 295,0 | 1 355,0 | 1 380,5 | 1 410,5 | 1 466,5 | 1 491,5 | 1 592,0 | 1 652,0 | 1 696,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,5 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

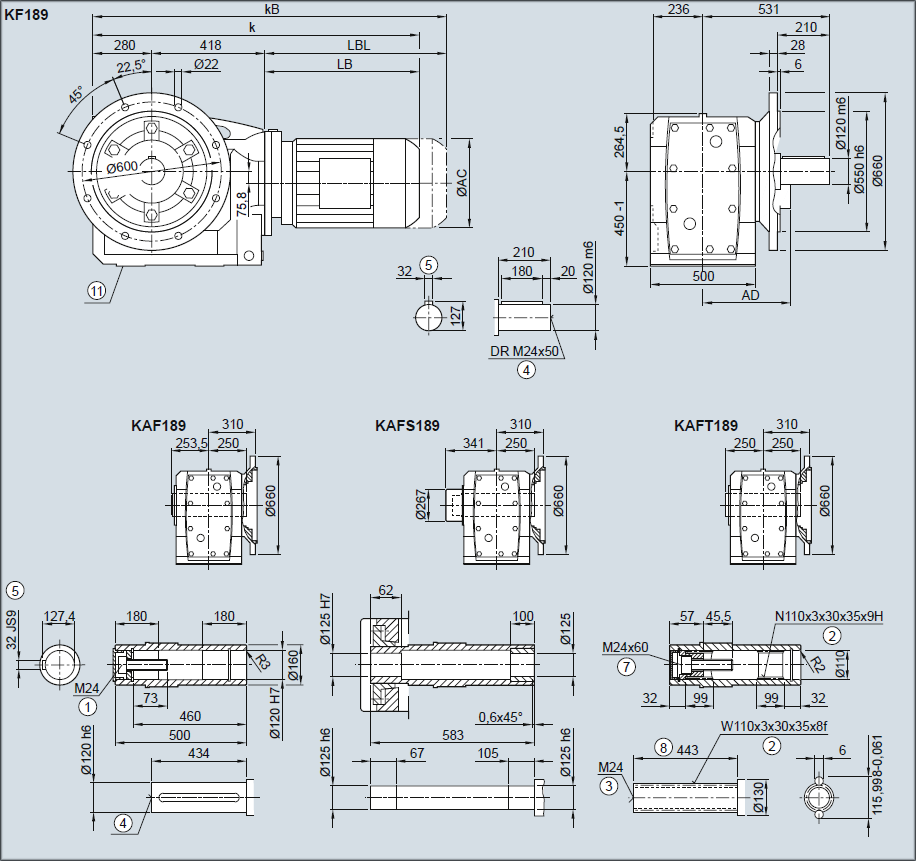

Редуктор KF189, KAF189, KASF189, KATF189 — Исполнение с фланцем
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,5 |
| k | 1 051,5 | 1 076,5 | 1 097,0 | 1 147,0 | 1 179,0 | 1 239,0 | 1 251,5 | 1 281,5 | 1 319,5 | 1 344,5 | 1 364,0 | 1 424,0 | 1 471,5 |
| kB | 1 124,5 | 1 149,5 | 1 201,5 | 1 251,5 | 1 295,0 | 1 355,0 | 1 380,5 | 1 410,5 | 1 466,5 | 1 491,5 | 1 592,0 | 1 652,0 | 1 696,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,5 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

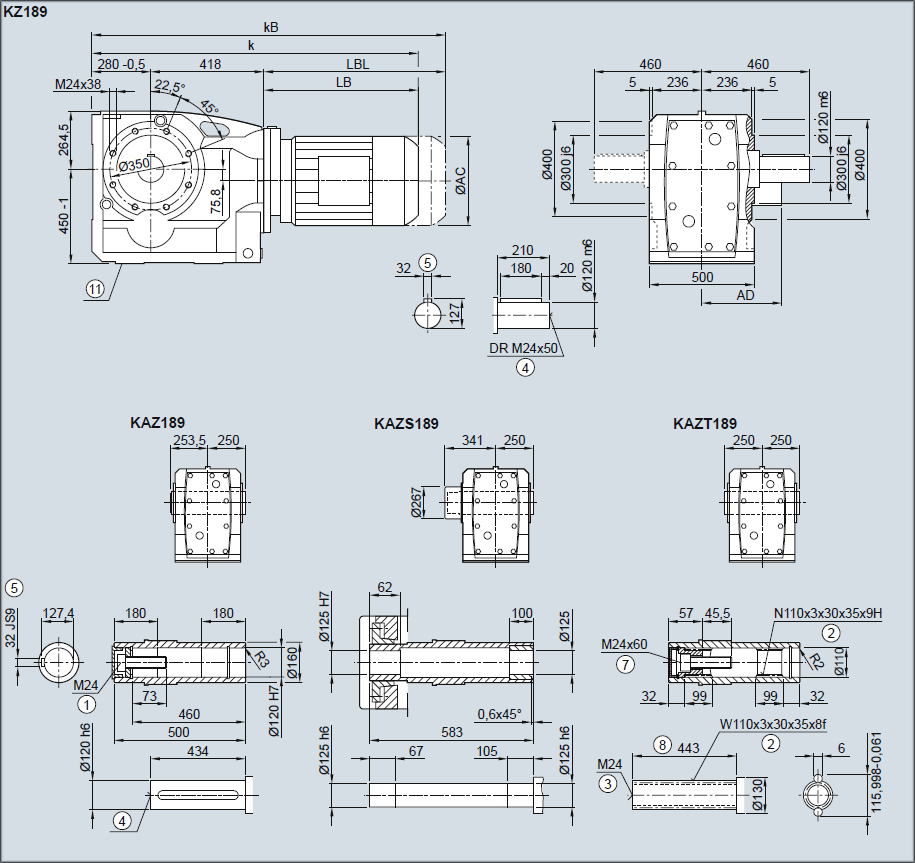

Редуктор KZ189, KAZ189, KAZS189, KAZT189 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,5 |
| k | 1 051,5 | 1 076,5 | 1 097,0 | 1 147,0 | 1 179,0 | 1 239,0 | 1 251,5 | 1 281,5 | 1 319,5 | 1 344,5 | 1 364,0 | 1 424,0 | 1 471,5 |
| kB | 1 124,5 | 1 149,5 | 1 201,5 | 1 251,5 | 1 295,0 | 1 355,0 | 1 380,5 | 1 410,5 | 1 466,5 | 1 491,5 | 1 592,0 | 1 652,0 | 1 696,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,5 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |
