Габаритные и присоединительные размеры

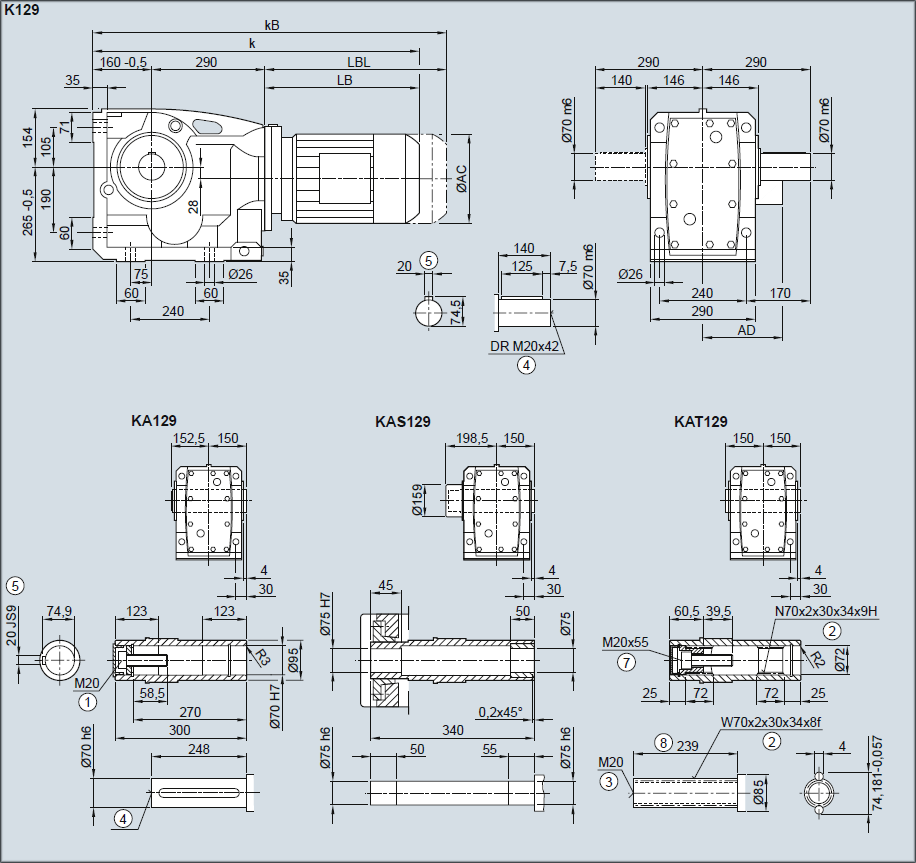

Редуктор K129, KA129, KAS129, KAT129 — Исполнение на лапах
| Двигатель | LE 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM |
| AC | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 |
| AD1) | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 |
| k | 766,0 | 806,0 | 816,5 | 851,5 | 826,5 | 851,5 | 879,5 | 929,5 | 961,5 | 1 021,5 | 1 034,5 | 1 064,5 | 1 102,5 | 1 127,5 | 1 148,0 | 1 208,0 |
| kB | 836,0 | 876,0 | 895,0 | 930,0 | 899,5 | 924,5 | 984,0 | 1 034,0 | 1 077,5 | 1 137,5 | 1 163,5 | 1 193,5 | 1 249,5 | 1 274,5 | 1 376,0 | 1 436,0 |
| LB | 316,0 | 356,0 | 366,5 | 401,5 | 376,5 | 401,5 | 429,5 | 479,5 | 511,5 | 571,5 | 584,5 | 614,5 | 652,5 | 677,5 | 698,0 | 758,0 |
| LBL | 386,0 | 426,0 | 445,0 | 480,0 | 449,5 | 474,5 | 534,0 | 584,0 | 627,5 | 687,5 | 713,5 | 743,5 | 799,5 | 824,5 | 926 | 986 |

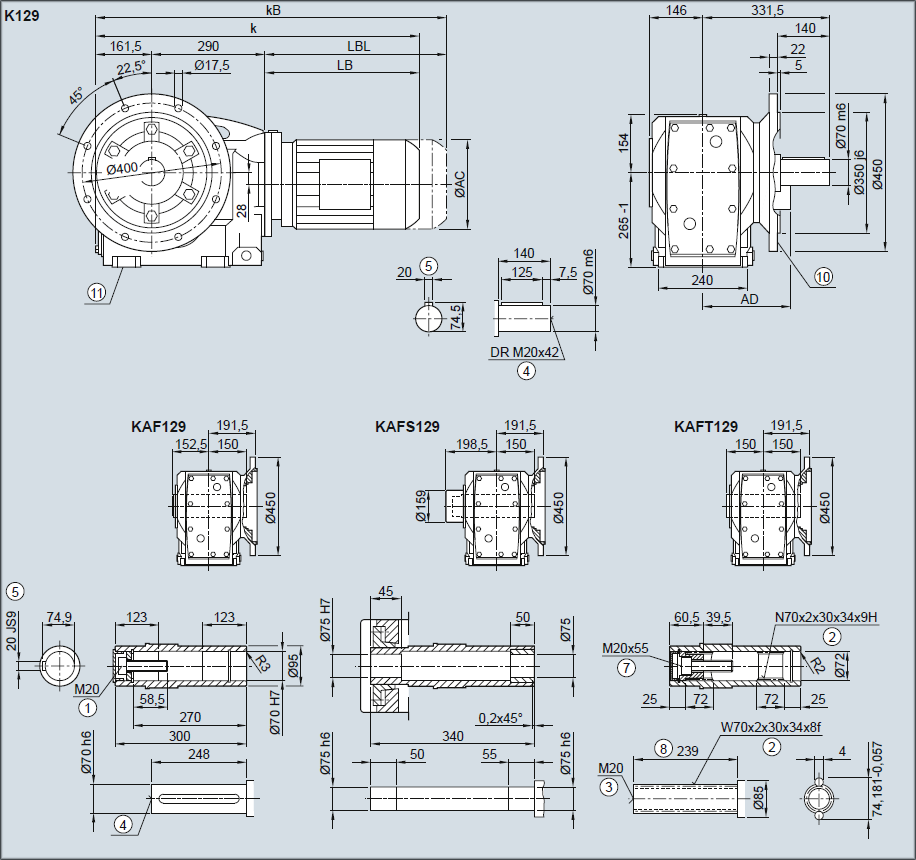

Редуктор KF129, KAF129, KASF129, KATF129 — Исполнение с фланцем
| Двигатель | LE 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM |
| AC | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 |
| AD1) | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 |
| k | 766,0 | 806,0 | 816,5 | 851,5 | 826,5 | 851,5 | 879,5 | 929,5 | 961,5 | 1 021,5 | 1 034,5 | 1 064,5 | 1 102,5 | 1 127,5 | 1 148,0 | 1 208,0 |
| kB | 836,0 | 876,0 | 895,0 | 930,0 | 899,5 | 924,5 | 984,0 | 1 034,0 | 1 077,5 | 1 137,5 | 1 163,5 | 1 193,5 | 1 249,5 | 1 274,5 | 1 376,0 | 1 436,0 |
| LB | 316,0 | 356,0 | 366,5 | 401,5 | 376,5 | 401,5 | 429,5 | 479,5 | 511,5 | 571,5 | 584,5 | 614,5 | 652,5 | 677,5 | 698,0 | 758,0 |
| LBL | 386,0 | 426,0 | 445,0 | 480,0 | 449,5 | 474,5 | 534,0 | 584,0 | 627,5 | 687,5 | 713,5 | 743,5 | 799,5 | 824,5 | 926 | 986 |

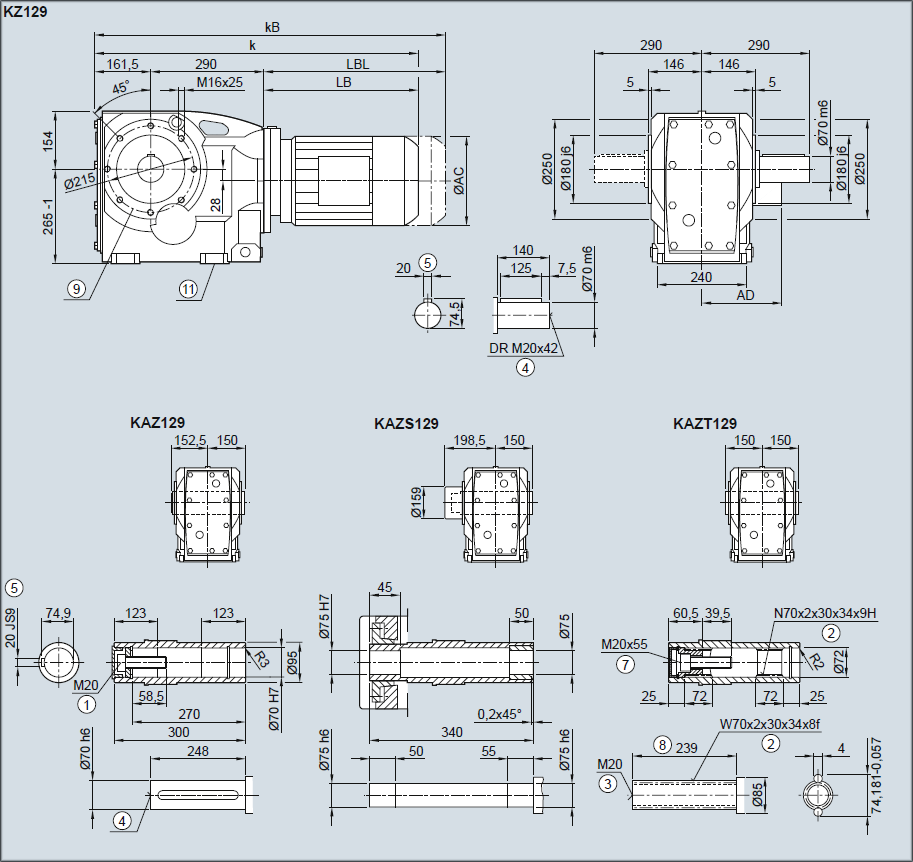

Редуктор KZ129, KAZ129, KAZS129, KAZT129 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LE 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM |
| AC | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 |
| AD1) | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 |
| k | 766,0 | 806,0 | 816,5 | 851,5 | 826,5 | 851,5 | 879,5 | 929,5 | 961,5 | 1 021,5 | 1 034,5 | 1 064,5 | 1 102,5 | 1 127,5 | 1 148,0 | 1 208,0 |
| kB | 836,0 | 876,0 | 895,0 | 930,0 | 899,5 | 924,5 | 984,0 | 1 034,0 | 1 077,5 | 1 137,5 | 1 163,5 | 1 193,5 | 1 249,5 | 1 274,5 | 1 376,0 | 1 436,0 |
| LB | 316,0 | 356,0 | 366,5 | 401,5 | 376,5 | 401,5 | 429,5 | 479,5 | 511,5 | 571,5 | 584,5 | 614,5 | 652,5 | 677,5 | 698,0 | 758,0 |
| LBL | 386,0 | 426,0 | 445,0 | 480,0 | 449,5 | 474,5 | 534,0 | 584,0 | 627,5 | 687,5 | 713,5 | 743,5 | 799,5 | 824,5 | 926 | 986 |
