Габаритные и присоединительные размеры

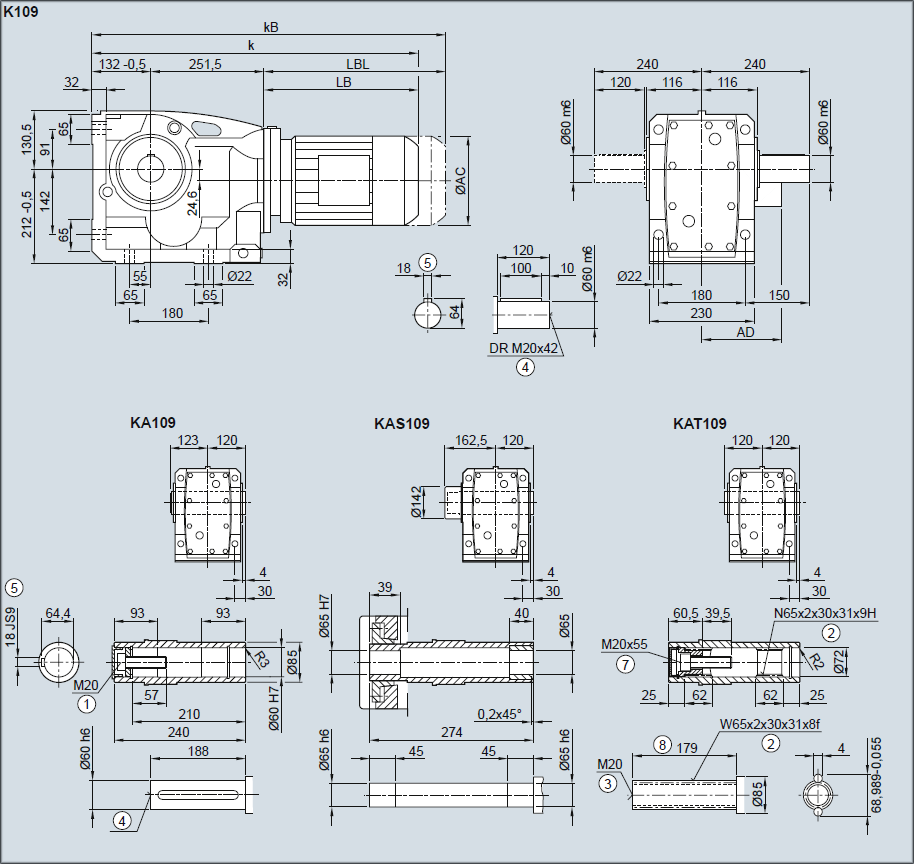

Редуктор K109, KA109, KAS109, KAT109 — Исполнение на лапах
| Двигатель | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL |
| AC | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 |
| AD1) | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 |
| k | 645,0 | 680,0 | 706,5 | 746,5 | 759,0 | 794,0 | 769,0 | 794,0 | 822,0 | 872,0 | 904,0 | 964,0 | 977,0 | 1 007,0 |
| kB | 705,0 | 740,0 | 776,5 | 816,5 | 837,5 | 872,5 | 842,0 | 867,0 | 926,5 | 976,5 | 1 020,0 | 1 080,0 | 1 106,0 | 1 136,0 |
| LB | 261,5 | 296,5 | 323,0 | 363,0 | 375,5 | 410,5 | 385,5 | 410,5 | 438,5 | 488,5 | 520,5 | 580,5 | 593,5 | 623,5 |
| LBL | 321,5 | 356,5 | 393,0 | 433,0 | 454,0 | 489,0 | 458,5 | 483,5 | 543,0 | 593,0 | 636,5 | 696,5 | 722,5 | 752,5 |
Редуктор KF109, KAF109, KASF109, KATF109 — Исполнение с фланцем
| Двигатель | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL |
| AC | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 |
| AD1) | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 |
| k | 645,0 | 680,0 | 706,5 | 746,5 | 759,0 | 794,0 | 769,0 | 794,0 | 822,0 | 872,0 | 904,0 | 964,0 | 977,0 | 1 007,0 |
| kB | 705,0 | 740,0 | 776,5 | 816,5 | 837,5 | 872,5 | 842,0 | 867,0 | 926,5 | 976,5 | 1 020,0 | 1 080,0 | 1 106,0 | 1 136,0 |
| LB | 261,5 | 296,5 | 323,0 | 363,0 | 375,5 | 410,5 | 385,5 | 410,5 | 438,5 | 488,5 | 520,5 | 580,5 | 593,5 | 623,5 |
| LBL | 321,5 | 356,5 | 393,0 | 433,0 | 454,0 | 489,0 | 458,5 | 483,5 | 543,0 | 593,0 | 636,5 | 696,5 | 722,5 | 752,5 |

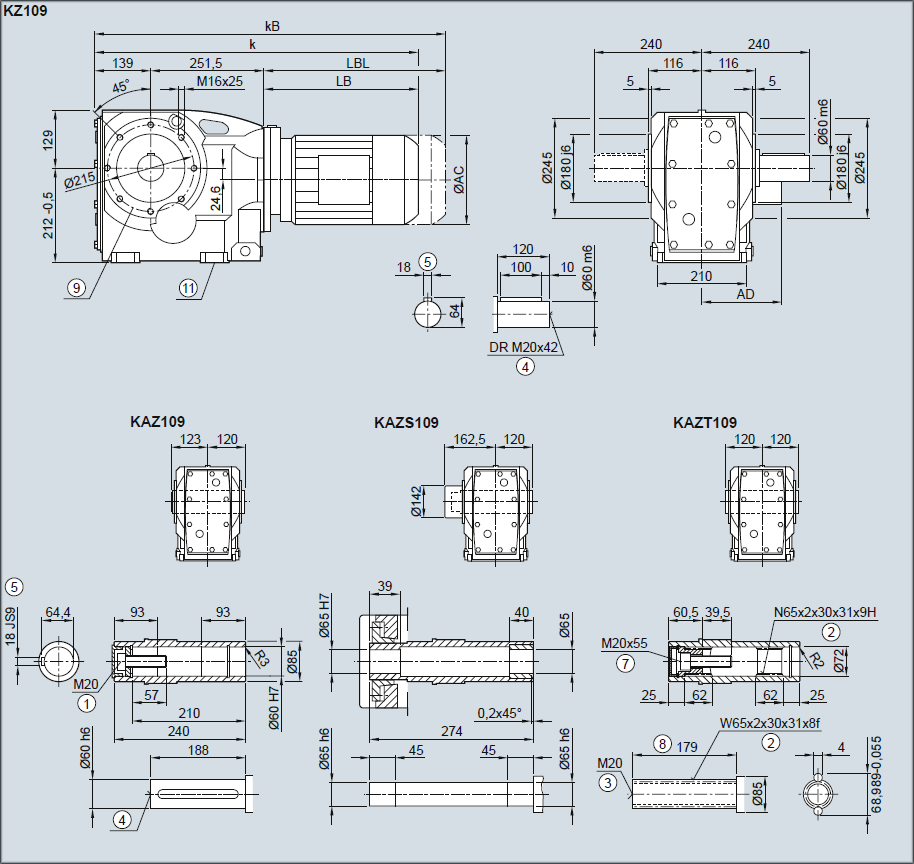

Редуктор KZ109, KAZ109, KAZS109, KAZT109 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL |
| AC | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 |
| AD1) | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 |
| k | 645,0 | 680,0 | 706,5 | 746,5 | 759,0 | 794,0 | 769,0 | 794,0 | 822,0 | 872,0 | 904,0 | 964,0 | 977,0 | 1 007,0 |
| kB | 705,0 | 740,0 | 776,5 | 816,5 | 837,5 | 872,5 | 842,0 | 867,0 | 926,5 | 976,5 | 1 020,0 | 1 080,0 | 1 106,0 | 1 136,0 |
| LB | 261,5 | 296,5 | 323,0 | 363,0 | 375,5 | 410,5 | 385,5 | 410,5 | 438,5 | 488,5 | 520,5 | 580,5 | 593,5 | 623,5 |
| LBL | 321,5 | 356,5 | 393,0 | 433,0 | 454,0 | 489,0 | 458,5 | 483,5 | 543,0 | 593,0 | 636,5 | 696,5 | 722,5 | 752,5 |
