Габаритные и присоединительные размеры

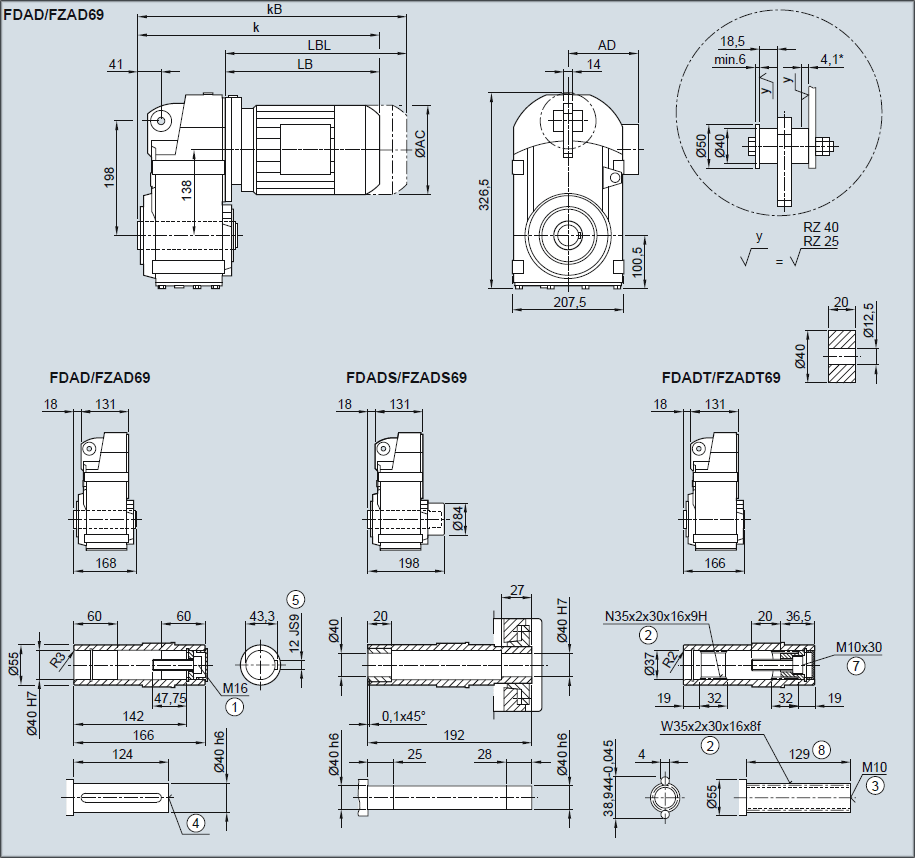

Редуктор FDAD69/FZAD69 — Насадное исполнение
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 333,5 | 365,5 | 429,5 | 464,5 | 491,0 | 531,0 | 547,5 | 582,5 | 557,5 | 592,0 | 610,5 | 660,5 |
| kB | 378,0 | 420,5 | 489,5 | 524,5 | 561,0 | 601,0 | 626,0 | 661,0 | 630,5 | 665,0 | 715,0 | 765,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
Редуктор FDZ69/FZZ69 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 333,5 | 365,5 | 429,5 | 464,5 | 491,0 | 531,0 | 547,5 | 582,5 | 557,5 | 592,0 | 610,5 | 660,5 |
| kB | 378,0 | 420,5 | 489,5 | 524,5 | 561,0 | 601,0 | 626,0 | 661,0 | 630,5 | 665,0 | 715,0 | 765,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

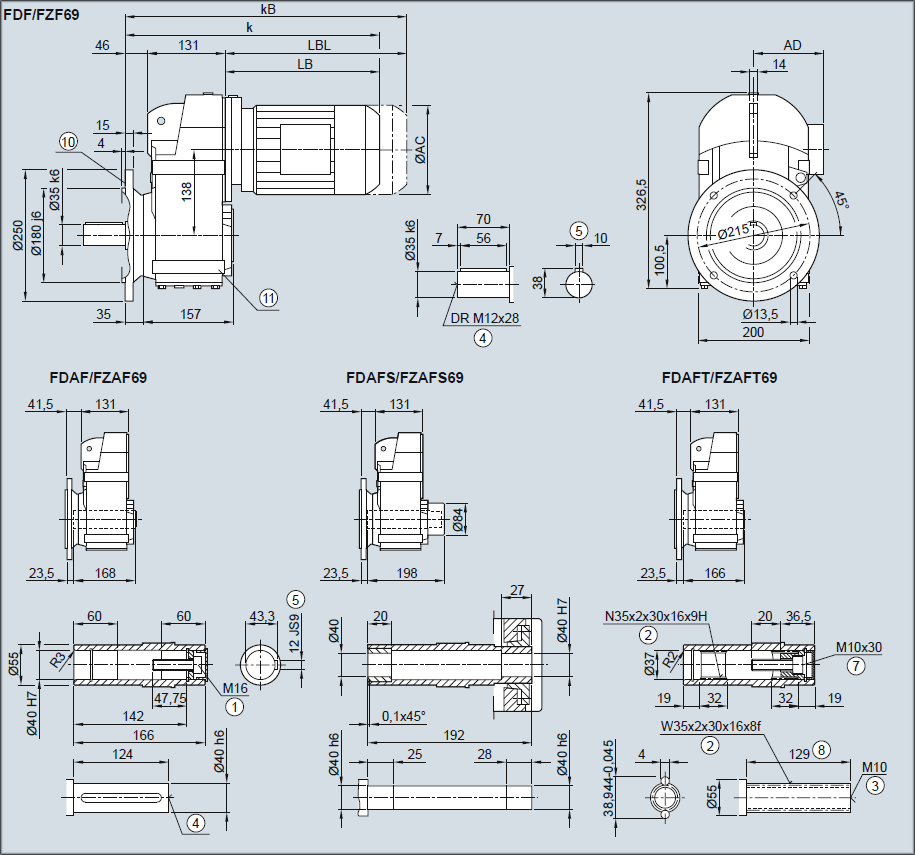

Редуктор FDF69/FZF69 — Исполнение с фланцем
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 333,5 | 365,5 | 429,5 | 464,5 | 491,0 | 531,0 | 547,5 | 582,5 | 557,5 | 592,0 | 610,5 | 660,5 |
| kB | 378,0 | 420,5 | 489,5 | 524,5 | 561,0 | 601,0 | 626,0 | 661,0 | 630,5 | 665,0 | 715,0 | 765,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

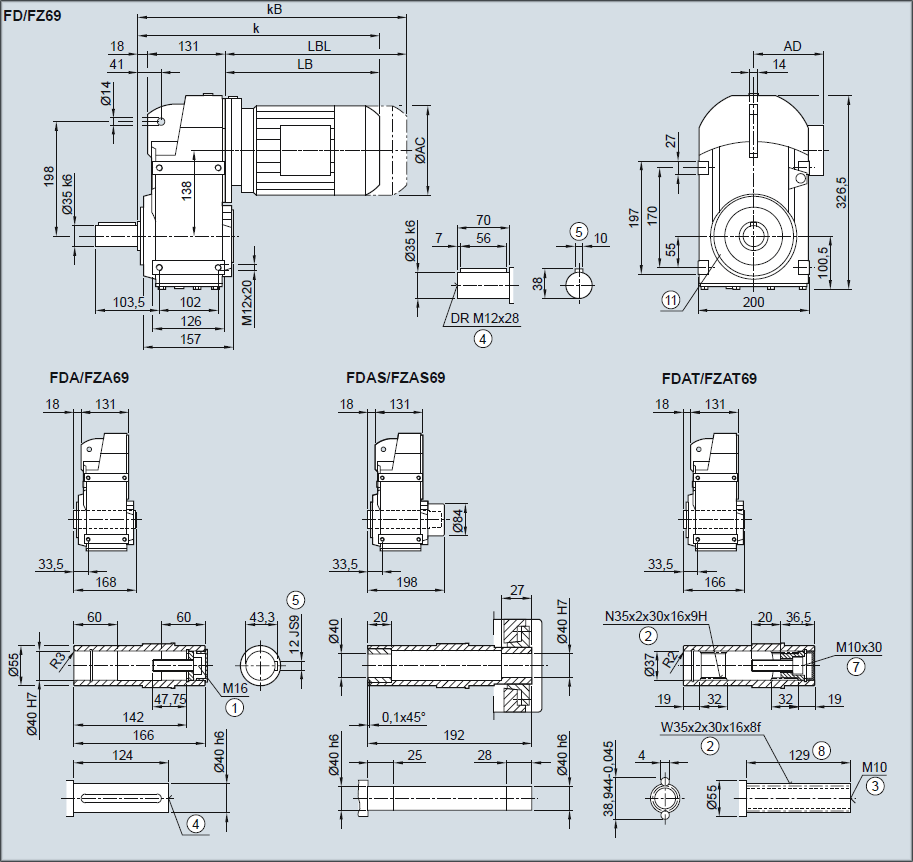

Редуктор FD69/FZ69 — Исполнение на лапах
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 333,5 | 365,5 | 429,5 | 464,5 | 491,0 | 531,0 | 547,5 | 582,5 | 557,5 | 592,0 | 610,5 | 660,5 |
| kB | 378,0 | 420,5 | 489,5 | 524,5 | 561,0 | 601,0 | 626,0 | 661,0 | 630,5 | 665,0 | 715,0 | 765,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
