Габаритные и присоединительные размеры

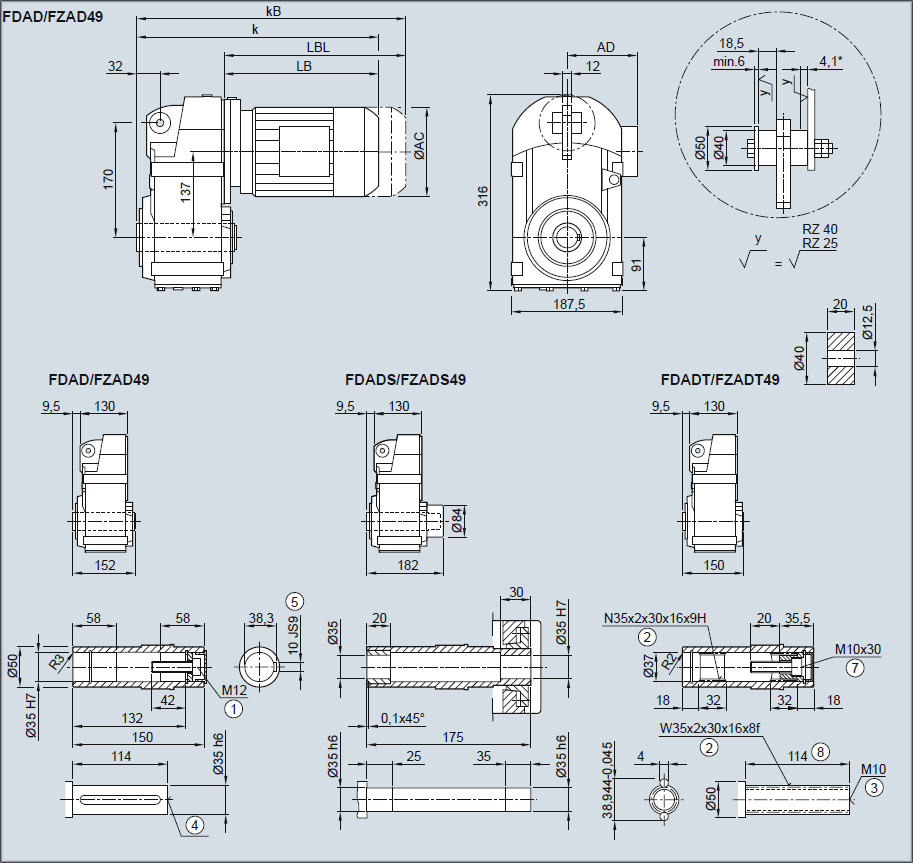

Редуктор FDAD49/FZAD49 — Насадное исполнение
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 324,0 | 356,0 | 420,0 | 455,0 | 481,5 | 521,5 | 538,0 | 573,0 | 548,0 | 582,5 | 601,0 | 651,0 |
| kB | 368,5 | 411,0 | 480,0 | 515,0 | 551,5 | 591,5 | 616,5 | 651,5 | 621,0 | 655,5 | 705,5 | 755,5 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
Редуктор FDZ49/FZZ49 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 324,0 | 356,0 | 420,0 | 455,0 | 481,5 | 521,5 | 538,0 | 573,0 | 548,0 | 582,5 | 601,0 | 651,0 |
| kB | 368,5 | 411,0 | 480,0 | 515,0 | 551,5 | 591,5 | 616,5 | 651,5 | 621,0 | 655,5 | 705,5 | 755,5 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

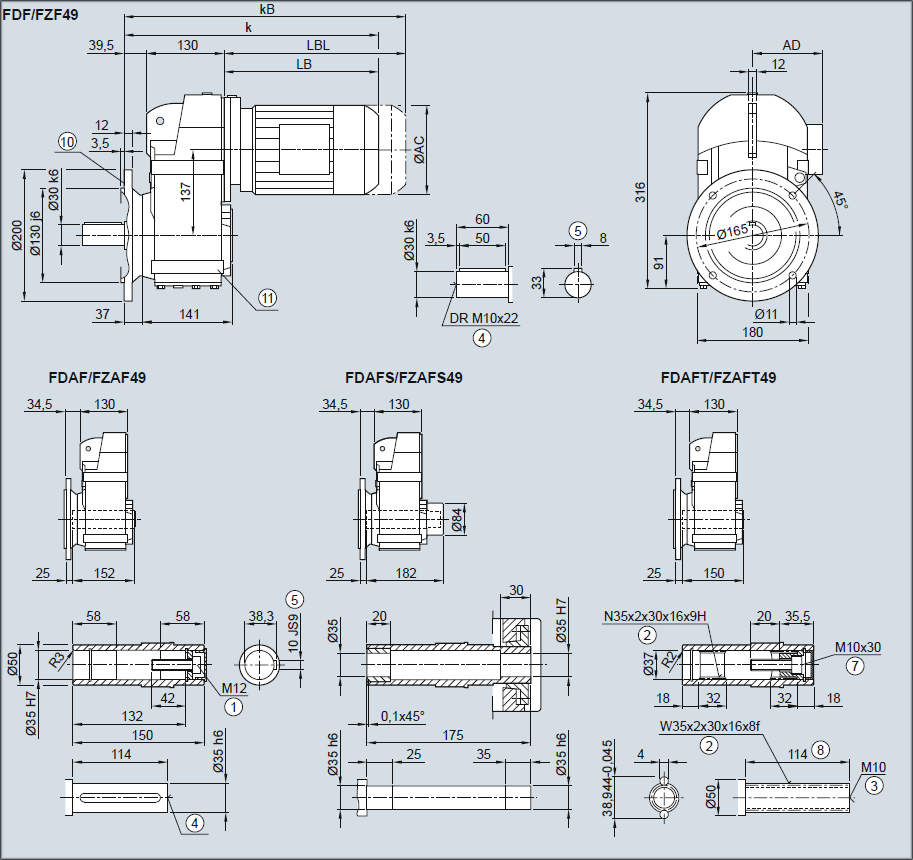

Редуктор FDF49/FZF49 — Исполнение с фланцем
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 324,0 | 356,0 | 420,0 | 455,0 | 481,5 | 521,5 | 538,0 | 573,0 | 548,0 | 582,5 | 601,0 | 651,0 |
| kB | 368,5 | 411,0 | 480,0 | 515,0 | 551,5 | 591,5 | 616,5 | 651,5 | 621,0 | 655,5 | 705,5 | 755,5 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

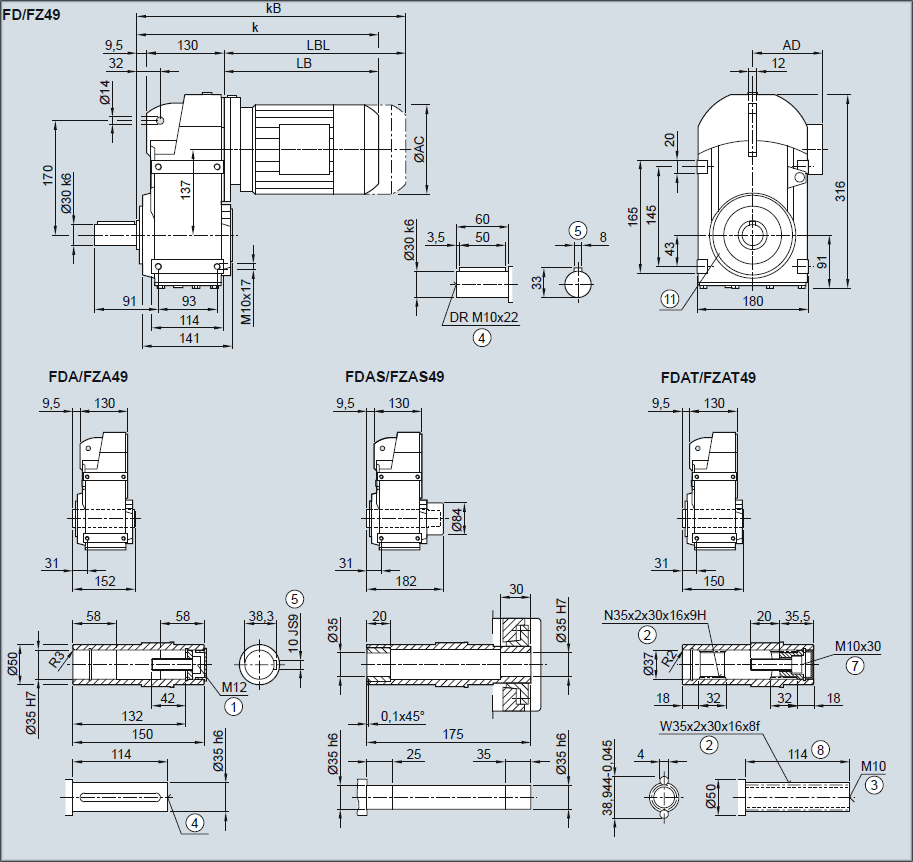

Редуктор FD49/FZ49 — Исполнение на лапах
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M2) | 112ZM2) | 132S/M2) | 132ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 324,0 | 356,0 | 420,0 | 455,0 | 481,5 | 521,5 | 538,0 | 573,0 | 548,0 | 582,5 | 601,0 | 651,0 |
| kB | 368,5 | 411,0 | 480,0 | 515,0 | 551,5 | 591,5 | 616,5 | 651,5 | 621,0 | 655,5 | 705,5 | 755,5 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
