Габаритные и присоединительные размеры

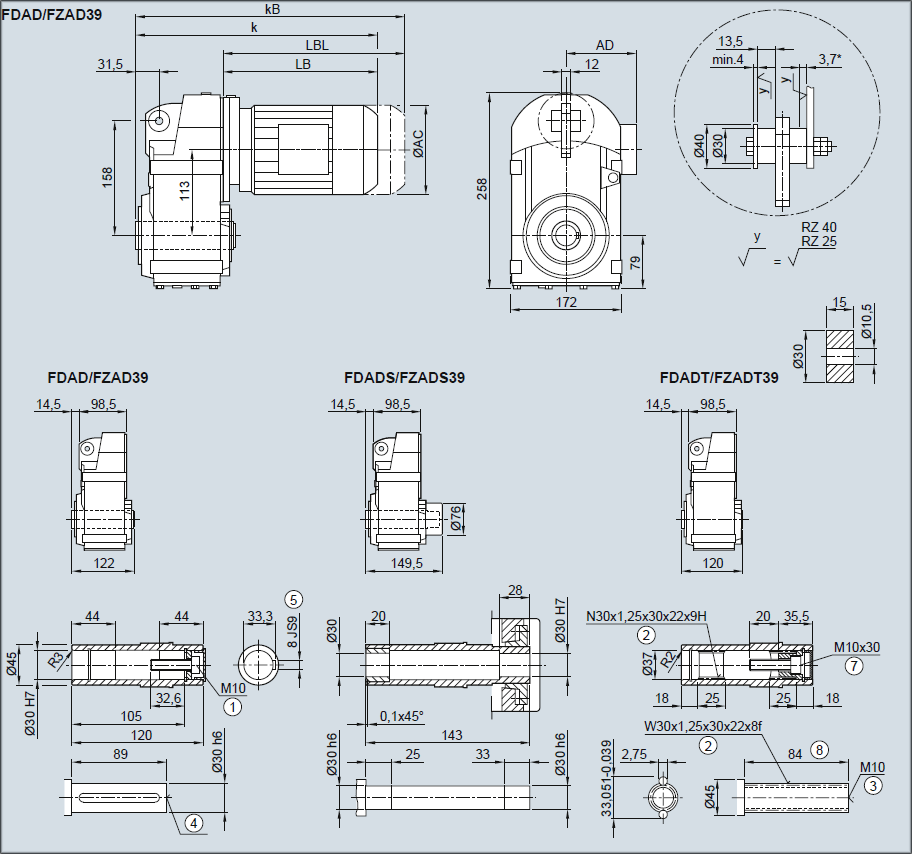

Редуктор FDAD39/FZAD39 — Насадное исполнение
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L2) | 100ZL2) | 112M2) | 112ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 |
| k | 307,0 | 339,0 | 403,0 | 438,0 | 464,5 | 504,5 | 521,0 | 556,0 | 531,0 | 556,0 |
| kB | 351,5 | 394,0 | 463,0 | 498,0 | 534,5 | 574,5 | 599,5 | 634,5 | 604,0 | 629,0 |
| LB | 194,0 | 226,0 | 290,0 | 325,0 | 351,5 | 391,5 | 408,0 | 443,0 | 418,0 | 443,0 |
| LBL | 238,5 | 281,0 | 350,0 | 385,0 | 421,5 | 461,5 | 486,5 | 521,5 | 491,0 | 516,0 |

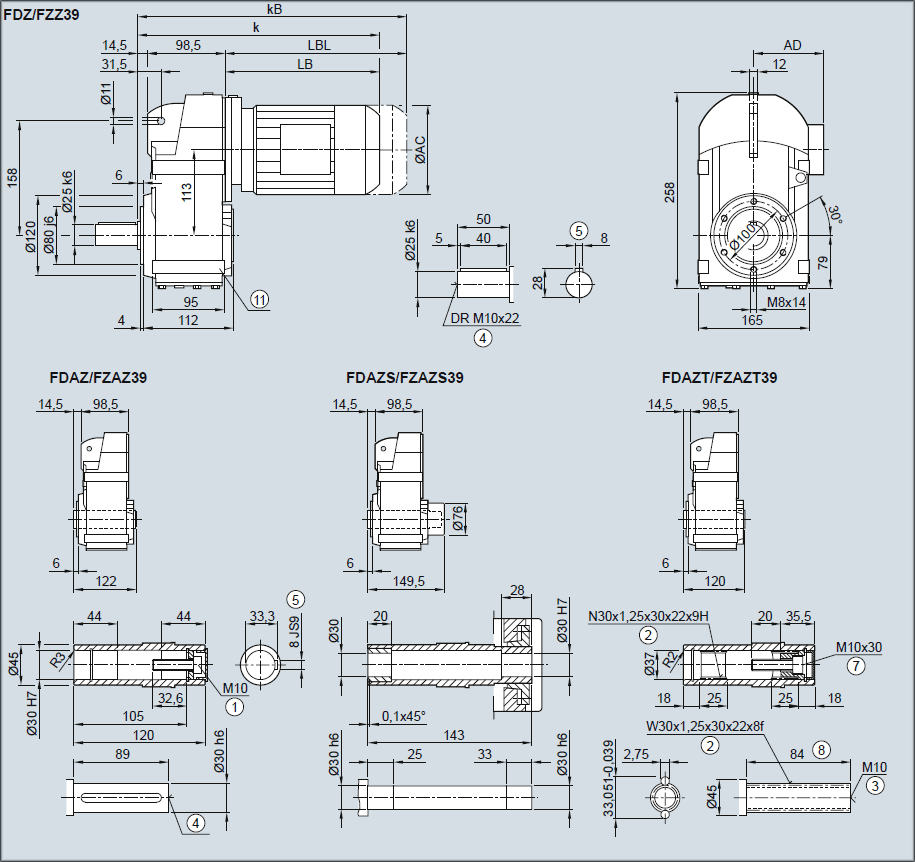

Редуктор FDZ39/FZZ39 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L2) | 100ZL2) | 112M2) | 112ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 |
| k | 307,0 | 339,0 | 403,0 | 438,0 | 464,5 | 504,5 | 521,0 | 556,0 | 531,0 | 556,0 |
| kB | 351,5 | 394,0 | 463,0 | 498,0 | 534,5 | 574,5 | 599,5 | 634,5 | 604,0 | 629,0 |
| LB | 194,0 | 226,0 | 290,0 | 325,0 | 351,5 | 391,5 | 408,0 | 443,0 | 418,0 | 443,0 |
| LBL | 238,5 | 281,0 | 350,0 | 385,0 | 421,5 | 461,5 | 486,5 | 521,5 | 491,0 | 516,0 |

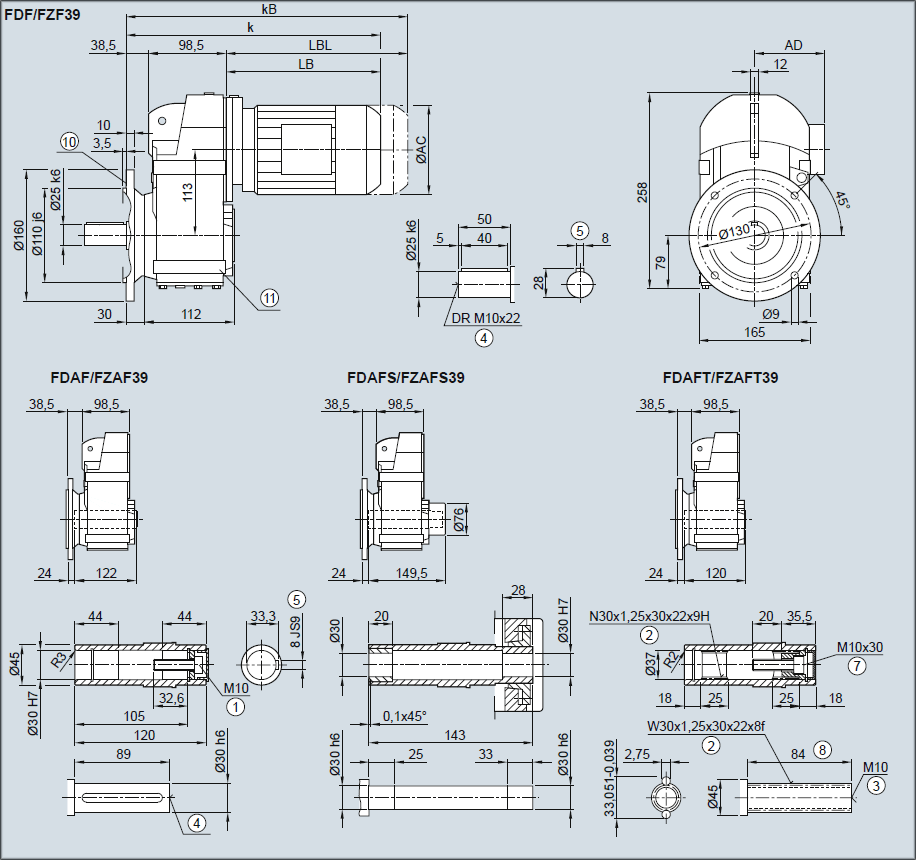

Редуктор FDF39/FZF39 — Исполнение с фланцем
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L2) | 100ZL2) | 112M2) | 112ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 |
| k | 307,0 | 339,0 | 403,0 | 438,0 | 464,5 | 504,5 | 521,0 | 556,0 | 531,0 | 556,0 |
| kB | 351,5 | 394,0 | 463,0 | 498,0 | 534,5 | 574,5 | 599,5 | 634,5 | 604,0 | 629,0 |
| LB | 194,0 | 226,0 | 290,0 | 325,0 | 351,5 | 391,5 | 408,0 | 443,0 | 418,0 | 443,0 |
| LBL | 238,5 | 281,0 | 350,0 | 385,0 | 421,5 | 461,5 | 486,5 | 521,5 | 491,0 | 516,0 |

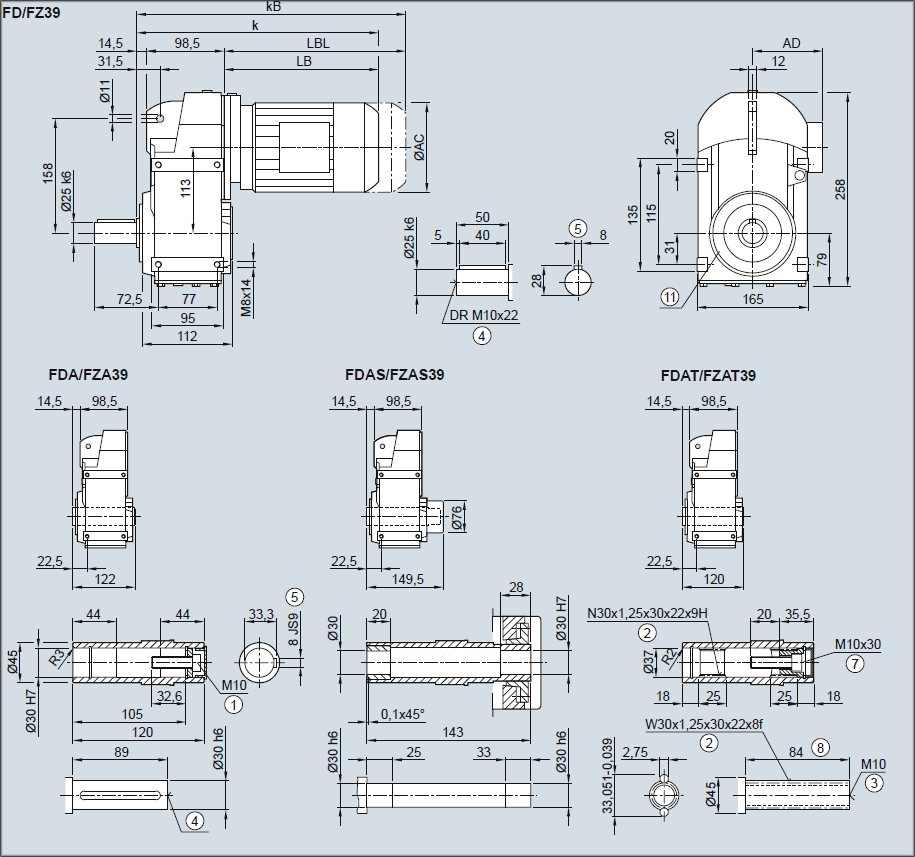

Редуктор FD39/FZ39 — Исполнение на лапах
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L2) | 100ZL2) | 112M2) | 112ZM2) |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 |
| k | 307,0 | 339,0 | 403,0 | 438,0 | 464,5 | 504,5 | 521,0 | 556,0 | 531,0 | 556,0 |
| kB | 351,5 | 394,0 | 463,0 | 498,0 | 534,5 | 574,5 | 599,5 | 634,5 | 604,0 | 629,0 |
| LB | 194,0 | 226,0 | 290,0 | 325,0 | 351,5 | 391,5 | 408,0 | 443,0 | 418,0 | 443,0 |
| LBL | 238,5 | 281,0 | 350,0 | 385,0 | 421,5 | 461,5 | 486,5 | 521,5 | 491,0 | 516,0 |
