Габаритные и присоединительные размеры

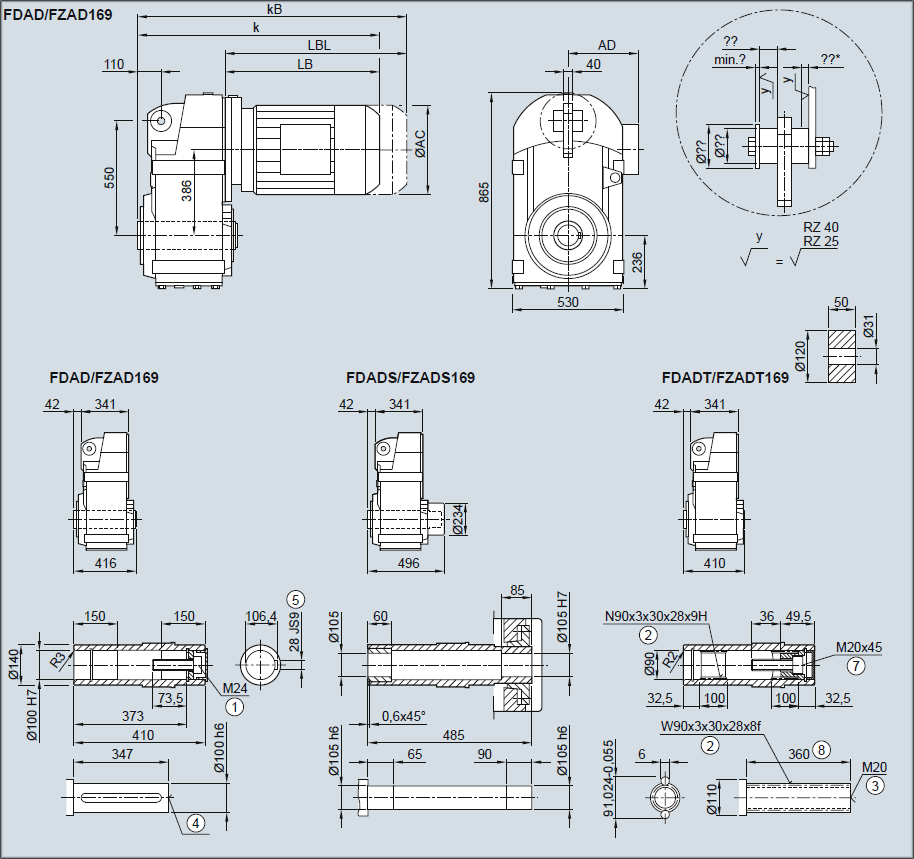

Редуктор FDAD169/FZAD169 — Насадное исполнение
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,0 |
| k | 739,5 | 764,5 | 785,0 | 835,0 | 867,0 | 927,0 | 939,5 | 969,5 | 1 007,5 | 1 032,5 | 1 052,5 | 1 112,0 | 1 159,5 |
| kB | 812,5 | 837,5 | 889,5 | 939,5 | 983,0 | 1 043,0 | 1 068,5 | 1 098,5 | 1 154,5 | 1 179,5 | 1 280,0 | 1 340,0 | 1 384,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,0 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

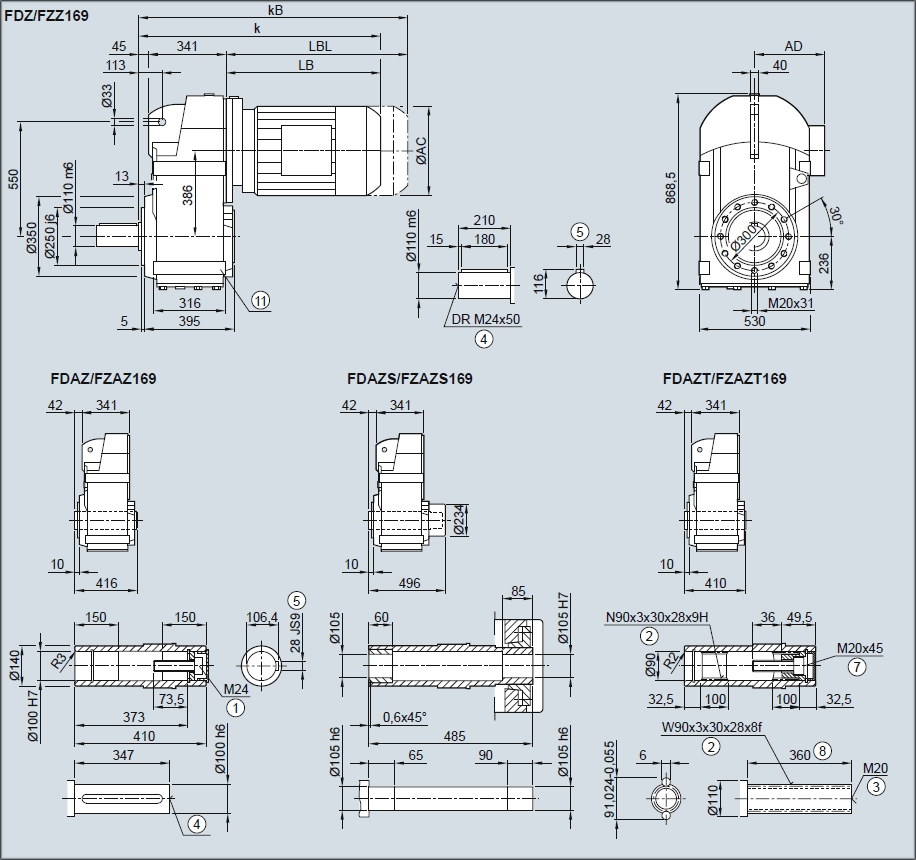

Редуктор FDZ169/FZZ169 — Исполнение с окружностью отверстий под резьбу
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,0 |
| k | 739,5 | 764,5 | 785,0 | 835,0 | 867,0 | 927,0 | 939,5 | 969,5 | 1 007,5 | 1 032,5 | 1 052,5 | 1 112,0 | 1 159,5 |
| kB | 812,5 | 837,5 | 889,5 | 939,5 | 983,0 | 1 043,0 | 1 068,5 | 1 098,5 | 1 154,5 | 1 179,5 | 1 280,0 | 1 340,0 | 1 384,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,0 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

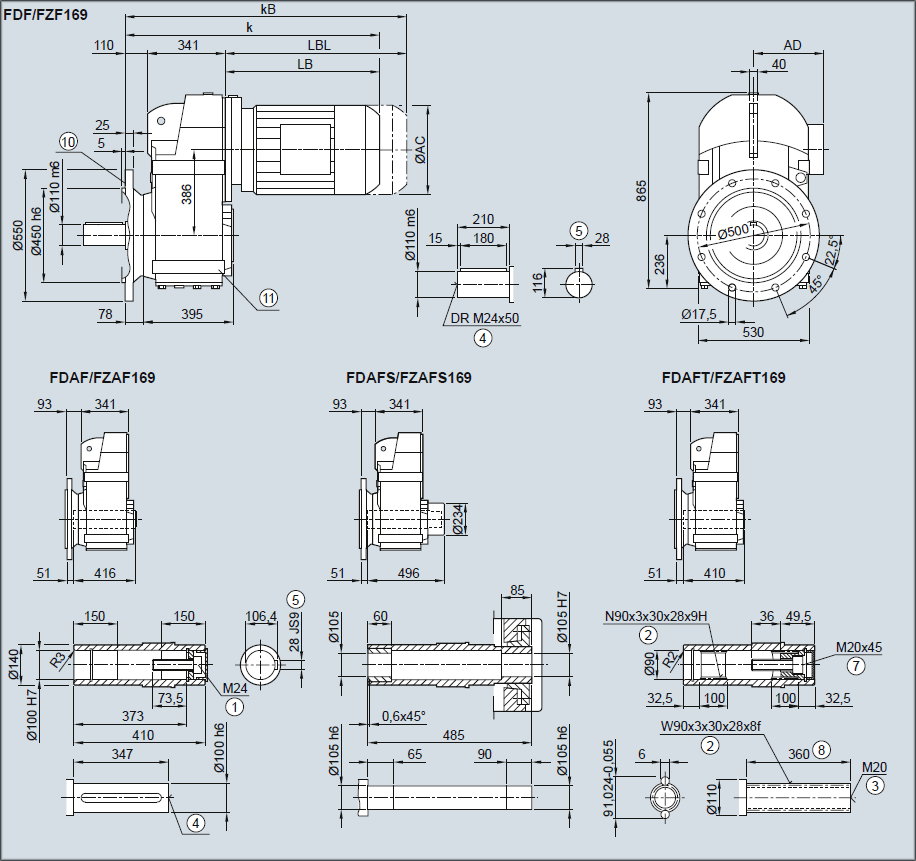

Редуктор FD.F.169/FZ.F.169 — Исполнение с фланцем
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,0 |
| k | 739,5 | 764,5 | 785,0 | 835,0 | 867,0 | 927,0 | 939,5 | 969,5 | 1 007,5 | 1 032,5 | 1 052,5 | 1 112,0 | 1 159,5 |
| kB | 812,5 | 837,5 | 889,5 | 939,5 | 983,0 | 1 043,0 | 1 068,5 | 1 098,5 | 1 154,5 | 1 179,5 | 1 280,0 | 1 340,0 | 1 384,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,0 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

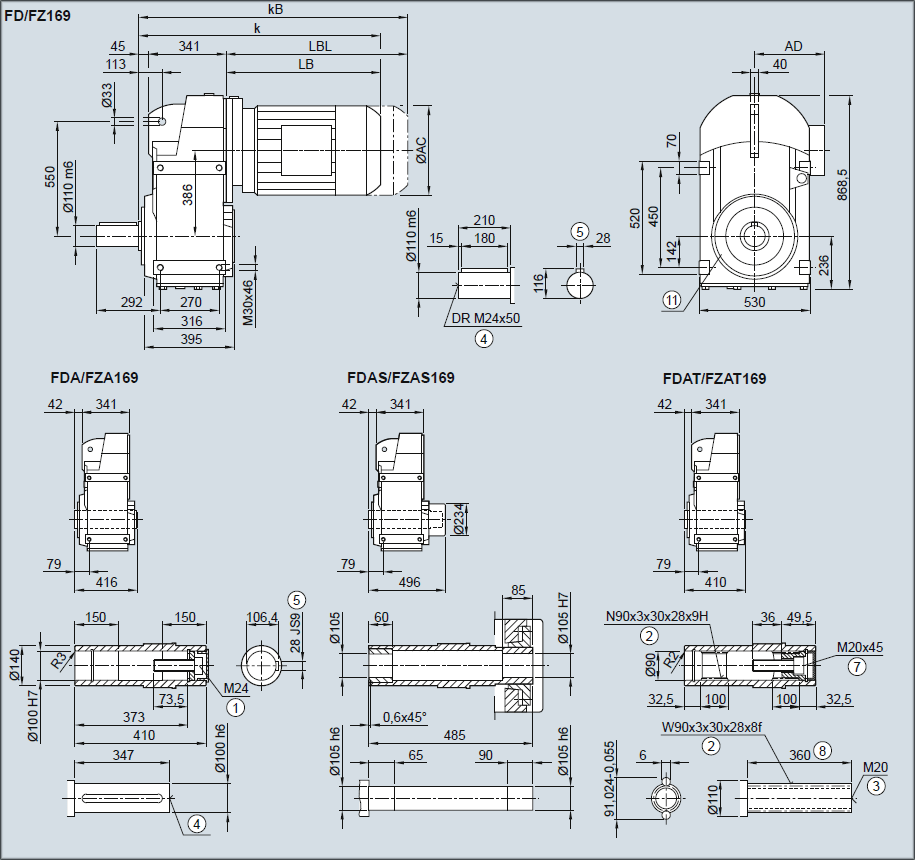

Редуктор FD..169/FZ..169 — Исполнение на лапах
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 382,0 | 382,0 | 457,0 |
| k | 739,5 | 764,5 | 785,0 | 835,0 | 867,0 | 927,0 | 939,5 | 969,5 | 1 007,5 | 1 032,5 | 1 052,5 | 1 112,0 | 1 159,5 |
| kB | 812,5 | 837,5 | 889,5 | 939,5 | 983,0 | 1 043,0 | 1 068,5 | 1 098,5 | 1 154,5 | 1 179,5 | 1 280,0 | 1 340,0 | 1 384,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,0 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |
