Габаритные и присоединительные размеры

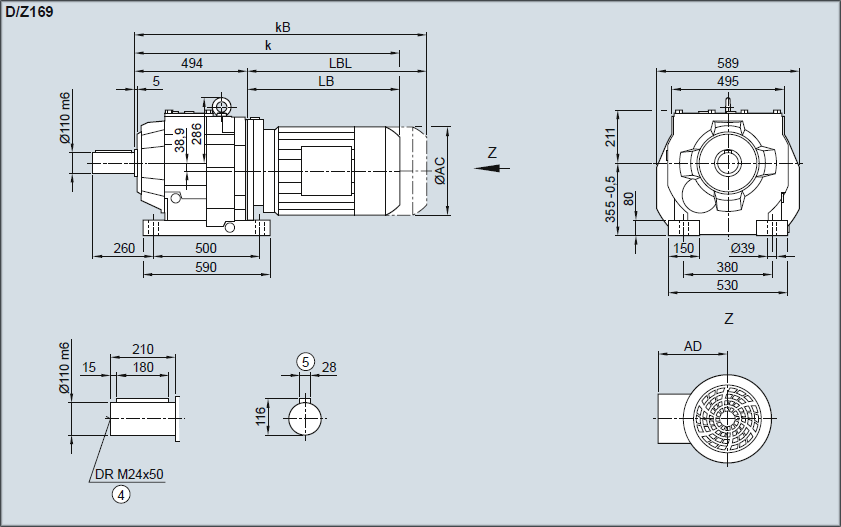

Редуктор D/Z169 — Исполнение на лапах
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 337,0 | 337,0 | 407,5 |
| k | 847,5 | 872,5 | 893,0 | 943,0 | 975,0 | 1 035,0 | 1 047,5 | 1 077,5 | 1 115,5 | 1 140,5 | 1 160,0 | 1 220,0 | 1 267,5 |
| kB | 920,5 | 945,5 | 997,5 | 1 047,5 | 1 091,0 | 1 151,0 | 1 176,5 | 1 206,5 | 1 262,5 | 1 287,5 | 1 388,0 | 1 448,0 | 1 492,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,5 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |

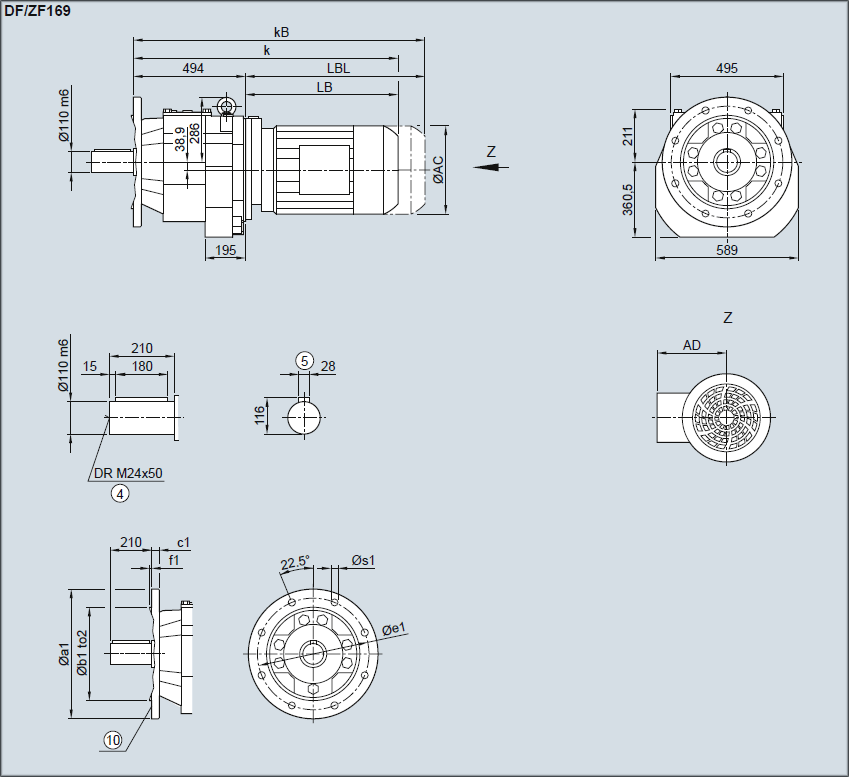

Редуктор DF/ZF169 — Исполнение с фланцем
| Фланец | a1 | b1 | to2 | c1 | e1 | f1 | s1 |
| 450 | 350 | h6 | 22 | 400 | 5 | 17,5 | |
| 550 | 450 | h6 | 25 | 500 | 5 | 17,5 |
| Двигатель | LE 112M | 112ZM | 132S/M | 132ZM | 160M/L | 160ZL | LES 180M/L | 180ZL | 200L | 200ZL | 225S/M | 225YM | 250M |
| AC | 222,0 | 222,0 | 264,0 | 264,0 | 318,0 | 318,0 | 352,5 | 352,5 | 392,5 | 392,5 | 439,0 | 439,0 | 487,0 |
| AD1) | 181,5 | 181,5 | 207,0 | 207,0 | 241,0 | 241,0 | 292,0 | 292,0 | 315,0 | 315,0 | 337,0 | 337,0 | 407,5 |
| k | 847,5 | 872,5 | 893,0 | 943,0 | 975,0 | 1 035,0 | 1 047,5 | 1 077,5 | 1 115,5 | 1 140,5 | 1 160,0 | 1 220,0 | 1 267,5 |
| kB | 920,5 | 945,5 | 997,5 | 1 047,5 | 1 091,0 | 1 151,0 | 1 176,5 | 1 206,5 | 1 262,5 | 1 287,5 | 1 388,0 | 1 448,0 | 1 492,5 |
| LB | 353,5 | 378,5 | 399,0 | 449,0 | 481,0 | 541,0 | 553,5 | 583,5 | 621,5 | 646,5 | 666,0 | 726,0 | 773,5 |
| LBL | 426,5 | 451,5 | 503,5 | 553,5 | 597,0 | 657,0 | 682,5 | 712,5 | 768,5 | 793,5 | 894,0 | 954,0 | 998,5 |
