Габаритные и присоединительные размеры

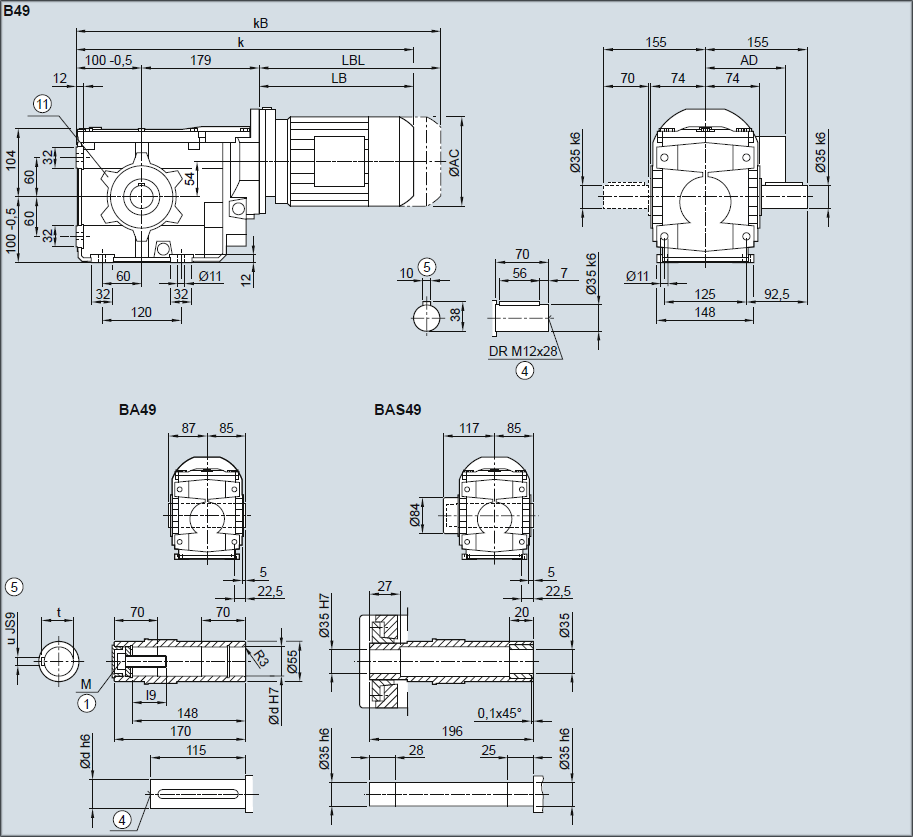

Редуктор B49, BA49, BAS49 — Исполнение на лапах
| Вал | d | l9 | M | t | u |
| 35 | 57 | M12 | 38,3 | 10 | |
| 40 | 67,75 | M16 | 43,3 | 12 |
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 463,5 | 495,5 | 559,5 | 594,5 | 621,0 | 661,0 | 677,5 | 712,5 | 687,5 | 722,0 | 740,5 | 790,5 |
| kB | 508,0 | 550,5 | 619,5 | 654,5 | 691,0 | 731,0 | 756,0 | 791,0 | 760,5 | 795,0 | 845,0 | 895,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
Редуктор BF49, BAF49, BAFS49 — Исполнение с фланцем
| Вал | d | l9 | M | t | u |
| 35 | 57 | M12 | 38,3 | 10 | |
| 40 | 67,75 | M16 | 43,3 | 12 |
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 463,5 | 495,5 | 559,5 | 594,5 | 621,0 | 661,0 | 677,5 | 712,5 | 687,5 | 722,0 | 740,5 | 790,5 |
| kB | 508,0 | 550,5 | 619,5 | 654,5 | 691,0 | 731,0 | 756,0 | 791,0 | 760,5 | 795,0 | 845,0 | 895,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |

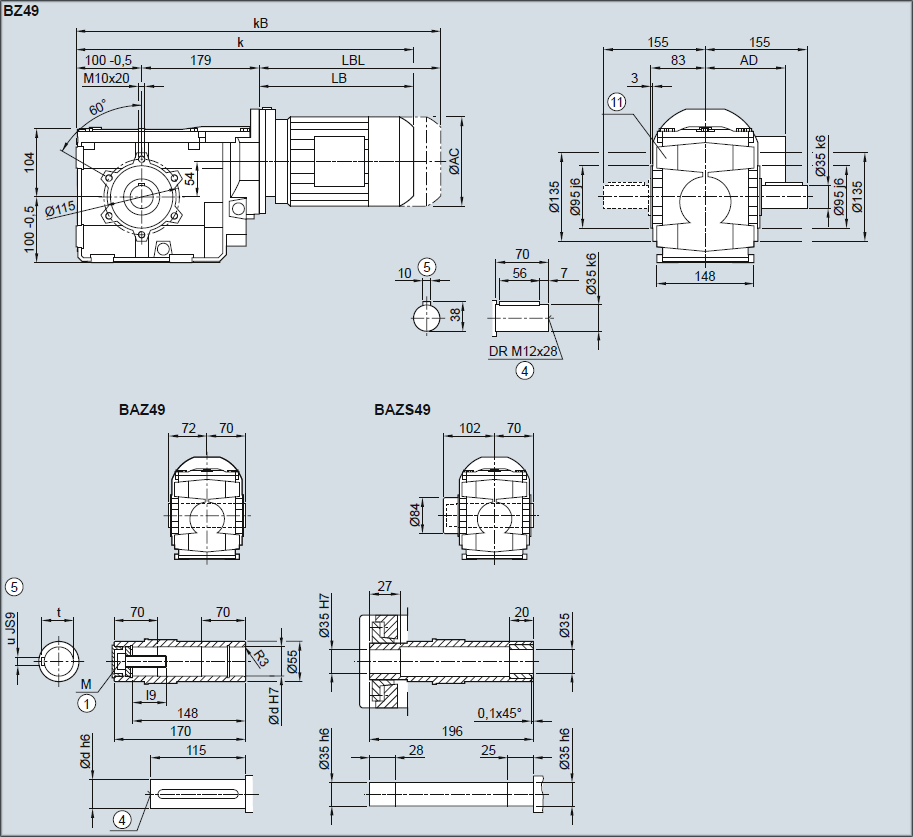

Редуктор BZ49, BAZ49, BAZS49 — Исполнение с окружностью отверстий под резьбу
| Вал | d | l9 | M | t | u |
| 35 | 57 | M12 | 38,3 | 10 | |
| 40 | 67,75 | M16 | 43,3 | 12 |
| Двигатель | LA 63M | 71M | LE 80M | 80ZM | 90S/L | 90ZL | 100L | 100ZL | 112M | 112ZM | 132S/M | 132ZM |
| AC | 117,8 | 138,8 | 156,3 | 156,3 | 173,8 | 173,8 | 198,0 | 198,0 | 222,0 | 222,0 | 264,0 | 264,0 |
| AD1) | 124,0 | 134,0 | 149,2 | 149,2 | 154,2 | 154,2 | 170,5 | 170,5 | 181,5 | 181,5 | 207,0 | 207,0 |
| k | 463,5 | 495,5 | 559,5 | 594,5 | 621,0 | 661,0 | 677,5 | 712,5 | 687,5 | 722,0 | 740,5 | 790,5 |
| kB | 508,0 | 550,5 | 619,5 | 654,5 | 691,0 | 731,0 | 756,0 | 791,0 | 760,5 | 795,0 | 845,0 | 895,0 |
| LB | 184,5 | 216,5 | 280,5 | 315,5 | 342,0 | 382,0 | 398,5 | 433,5 | 408,5 | 443,0 | 461,5 | 511,5 |
| LBL | 229,0 | 271,5 | 340,5 | 375,5 | 412,0 | 452,0 | 477,0 | 512,0 | 481,5 | 516,0 | 566,0 | 616,0 |
